Services/Canopies and carports
Entrance and walkway canopies, solar carports and EV hubs, concourse canopies and pergolas. The steel, the roof, the gutter and the drainage drawn together, with the foundations set out to the grid.
What comes back, stage by stage. Take the stages you need.

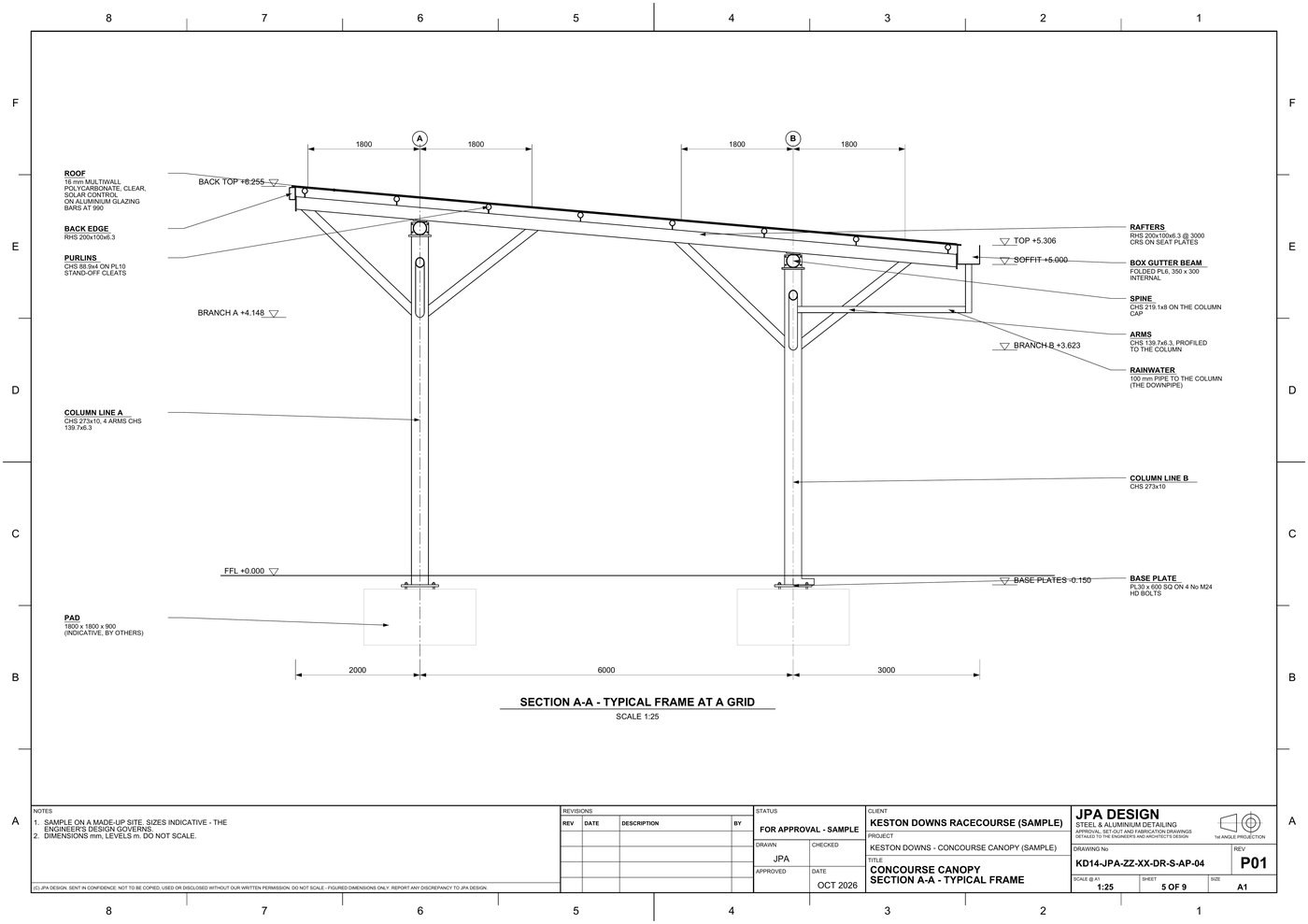

| Approval | 3D views, GA plans and elevations, sections through a frame, the gutter and the base. |
| Set-out | Foundation and HD bolt plans, a base schedule and base set-out details to the grids. |

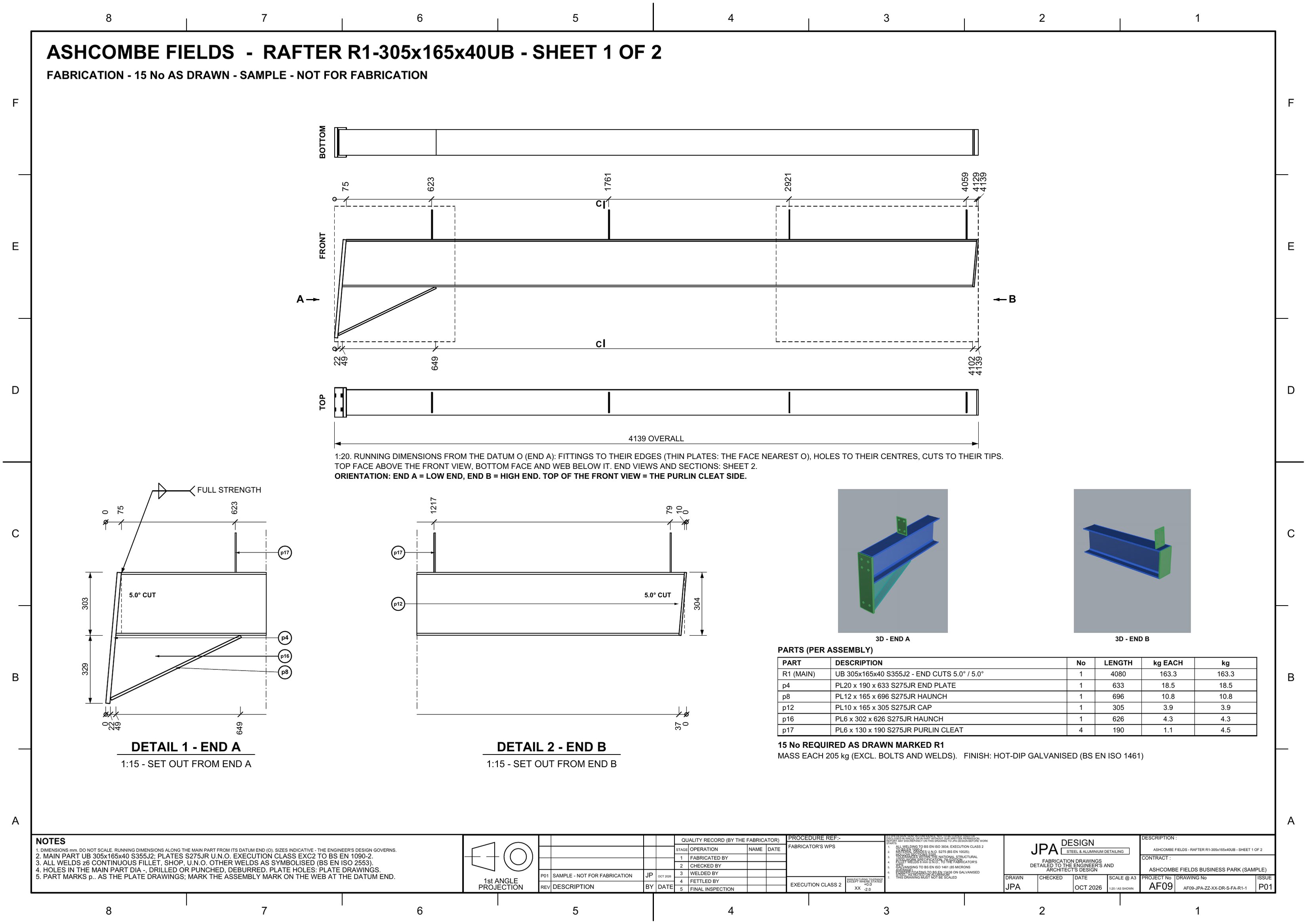

| Fabrication | Column and rafter assemblies, plates with DXFs, purlins, glazing bars and roof sheets scheduled. |
| Visuals | Renders of the canopy in place for the client. |
Made-up jobs, drawn the way a real one is: the model, the renders and the sheets that come out of it. Click a sheet to read it whole.
PDF, 5 sheets, 2 MB. Ask for the full pack.
KD14Sample project
Ten bays of tree-column concourse canopy

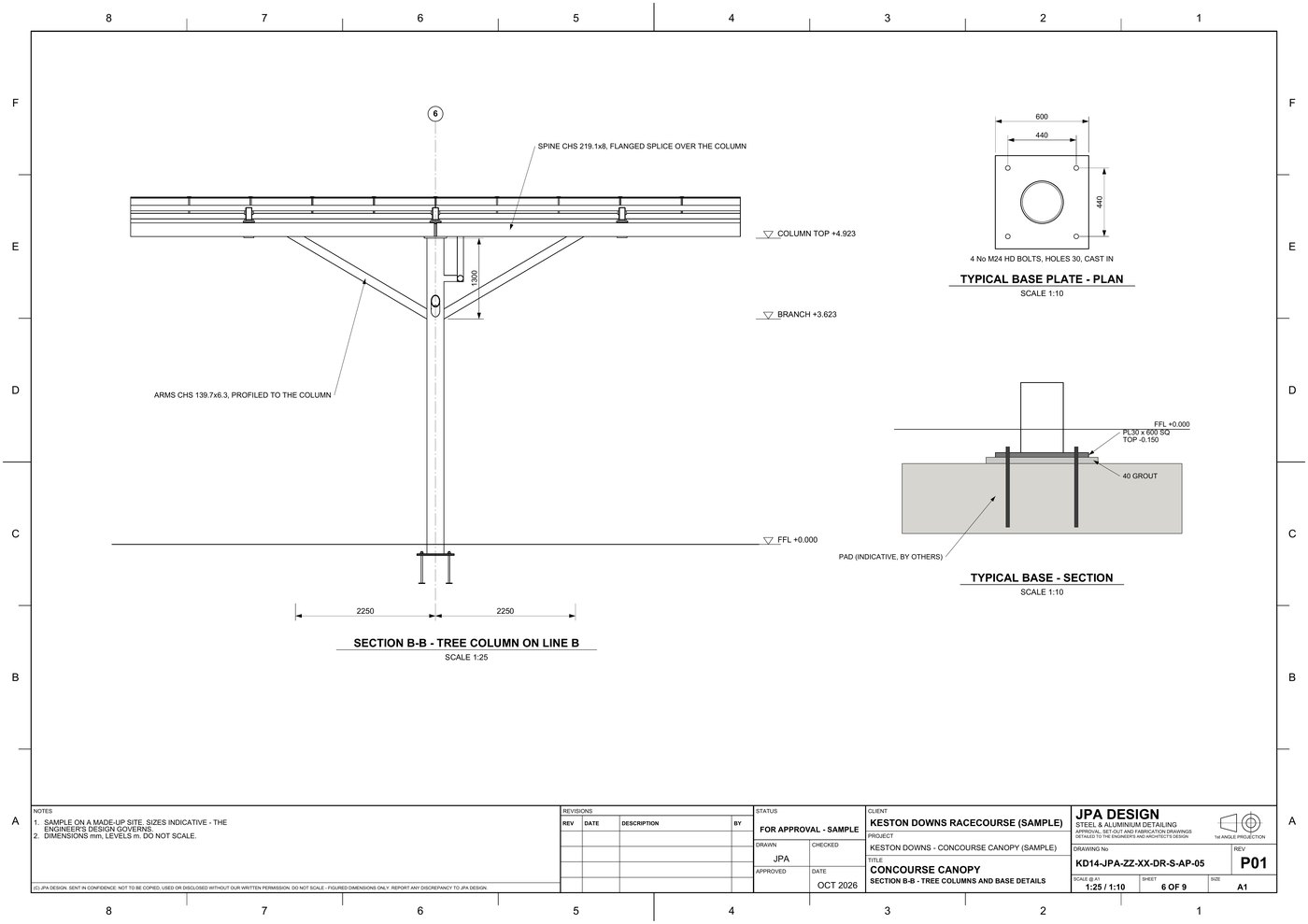

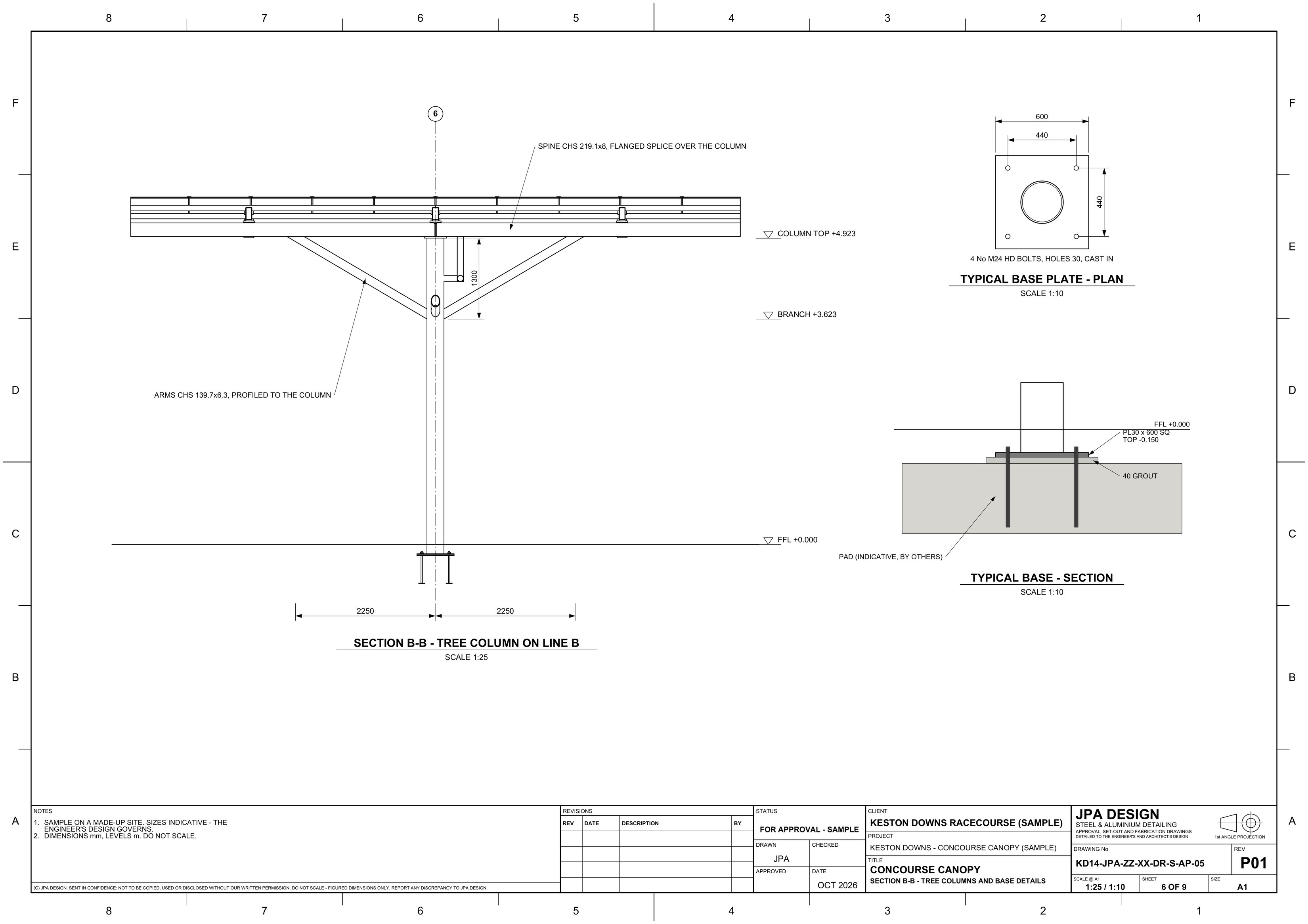

CHS tree columns with four arms each, RHS rafters, CHS purlins and 16 mm multiwall polycarbonate, the front columns doubling as downpipes into a folded gutter beam.
Open the sheet
Open the sheetAF09Sample project
Gull-wing solar carports and a rapid-charge hub

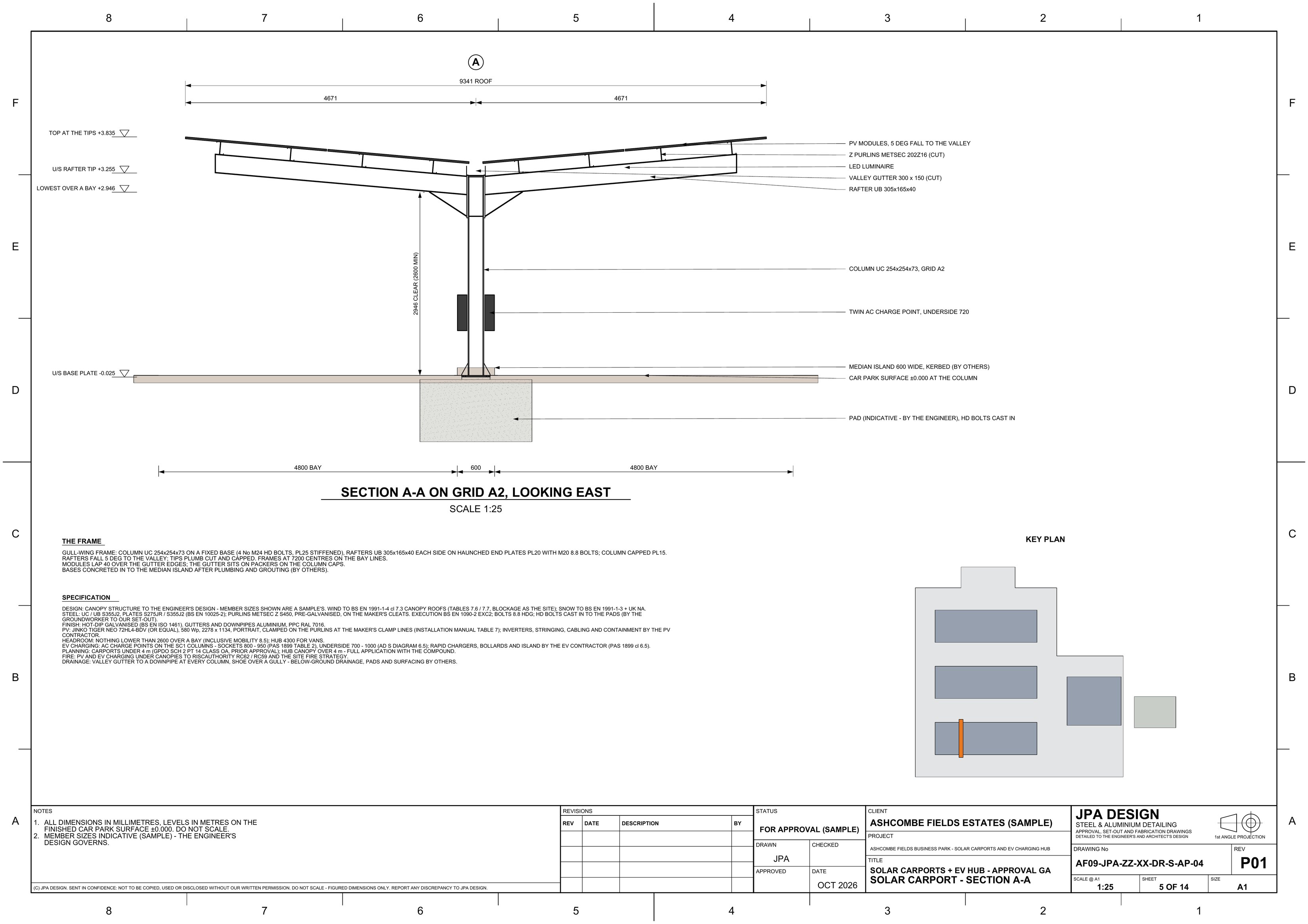

Three carport rows and a hub canopy over drive-up rapid chargers: UC columns on stiffened bases, rafters on haunched valley end plates, Metsec purlins at the panels’ clamp lines, the valley gutter on the column caps.
Open the sheet
Open the sheet
AQ15Sample project
Entrance canopies and podium pergolas
A glazed entrance canopy at each block and steel pergolas over the podium garden, each drawn as its own assembly.
Fixed before any work starts, on your drawings. No VAT charged.
| Pack | From | Turnaround |
|---|---|---|
| Approval set3D, GA, sections and details | £295 | 2 days |
| Approval + fabricationPer canopy type: assemblies, plates, DXFs, cut list | £595 | 3 days |
| Foundation set-outHD bolt plan, base schedule, base set-outs | £250 | next day |
Your engineer designs the steel; the drawings follow that design.
Send the drawings and get a fixed price back within four hours.
Not ready to send drawings? Ask for the full sample pack for your type of work, or a call back, with the form.
