Services/Structural steel frames

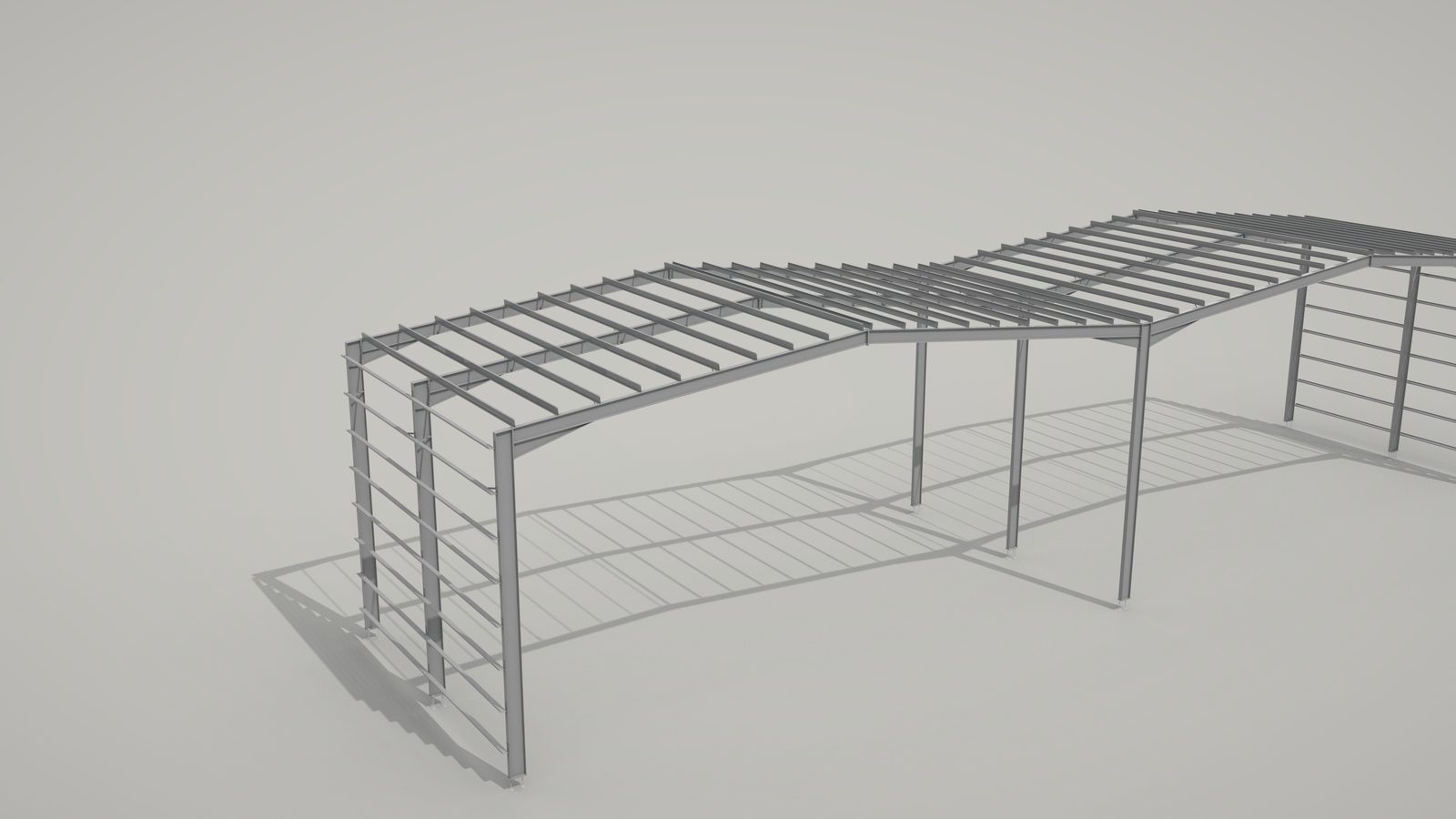

Portal frames, multi-storey frames, distribution centres and mezzanines, drawn the way the shop and the erector work: GA set, a sheet per assembly, plates with DXFs, NC1 files, erection stages and lift plans.
What comes back, stage by stage. Take the stages you need.
| GA set | Foundation and HD bolt plans, base set-out, roof plans, elevations, a frame per grid, floor plans. |
| Assemblies | A sheet per mark in the Tekla UK style: running dimensions both sides, holes on their own face, parts list. |
| Parts and plates | Single parts with NC1 / DSTV files, plates by thickness with a DXF each, cold-rolled schedules. |
| Erection | Stable-box stages, lift plans with sling legs and loads, loading lists in erection order. |
Made-up jobs, drawn the way a real one is: the model, the renders and the sheets that come out of it. Click a sheet to read it whole.
PDF, 6 sheets, 3 MB. Ask for the full pack.

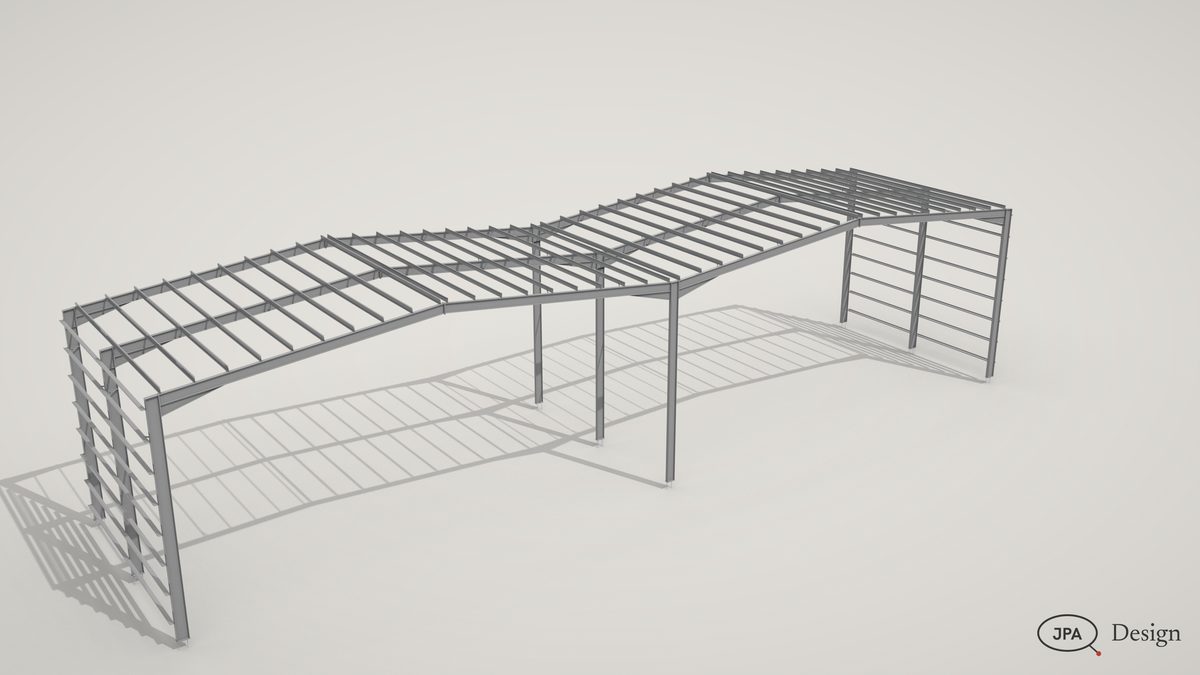

U7Sample project

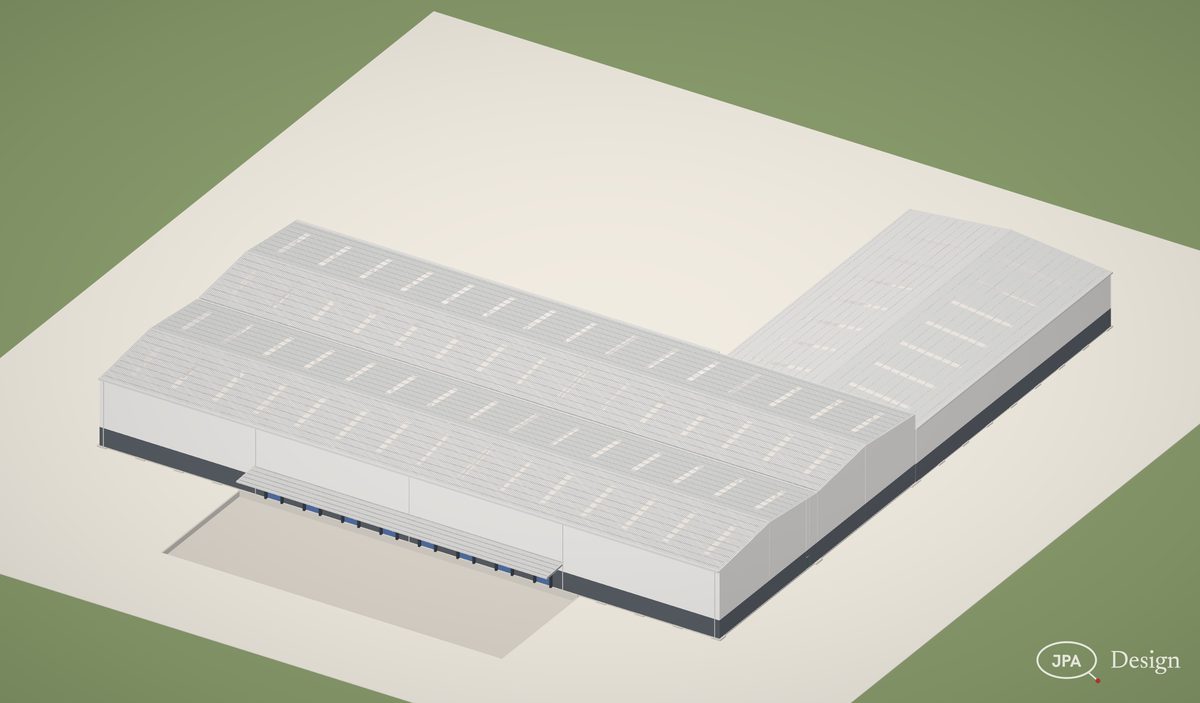

A 411 t twin-span distribution centre, the full Tekla-style issue

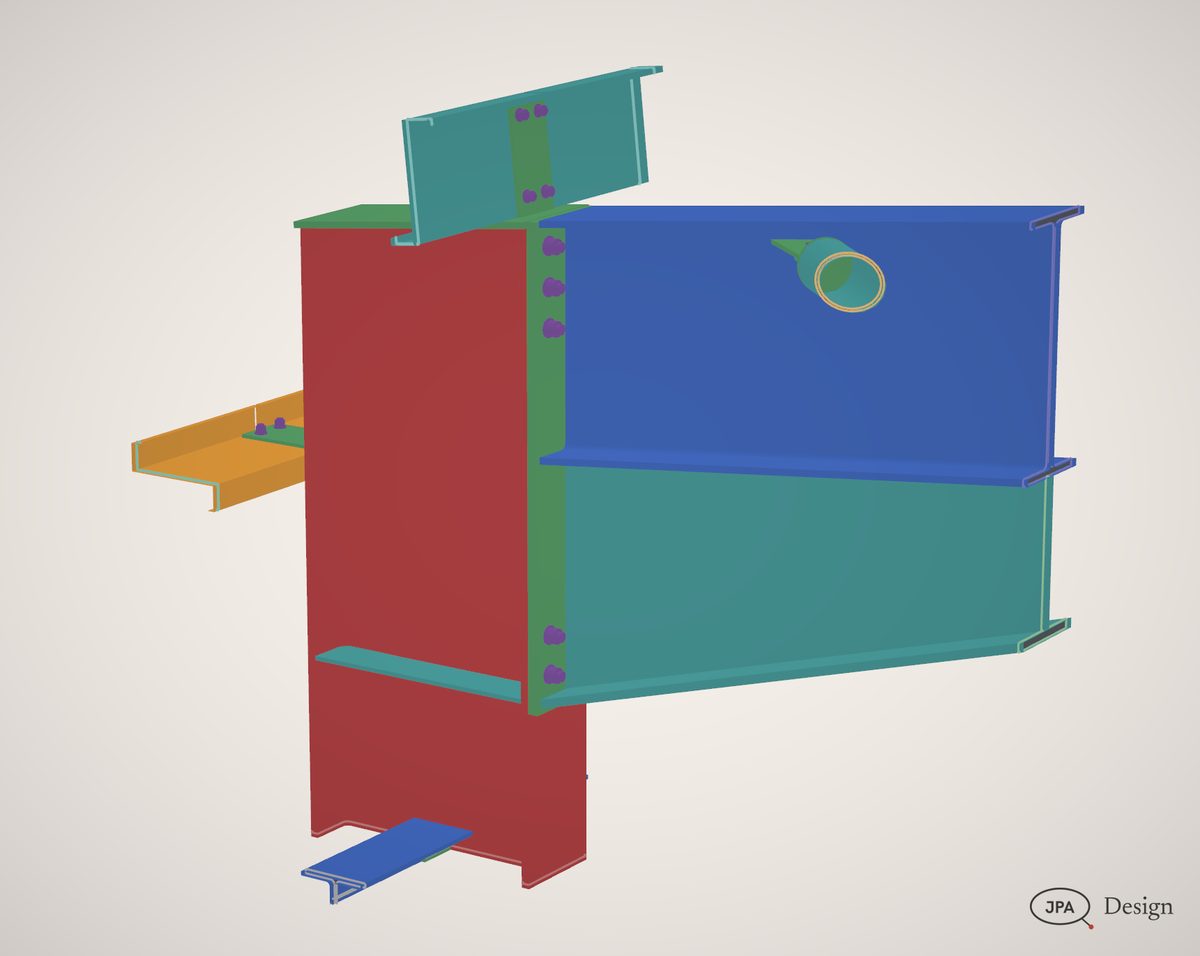

A 120 x 60 m twin span on valley columns with a 37.5 m wing, dock doors, a mezzanine and a two-storey office: GA set, every assembly, single parts with NC1 files, plates with DXFs, cold-rolled, connection details and the erection.
Open the sheet
Open the sheet
Open the sheet
Open the sheet
Open the sheet

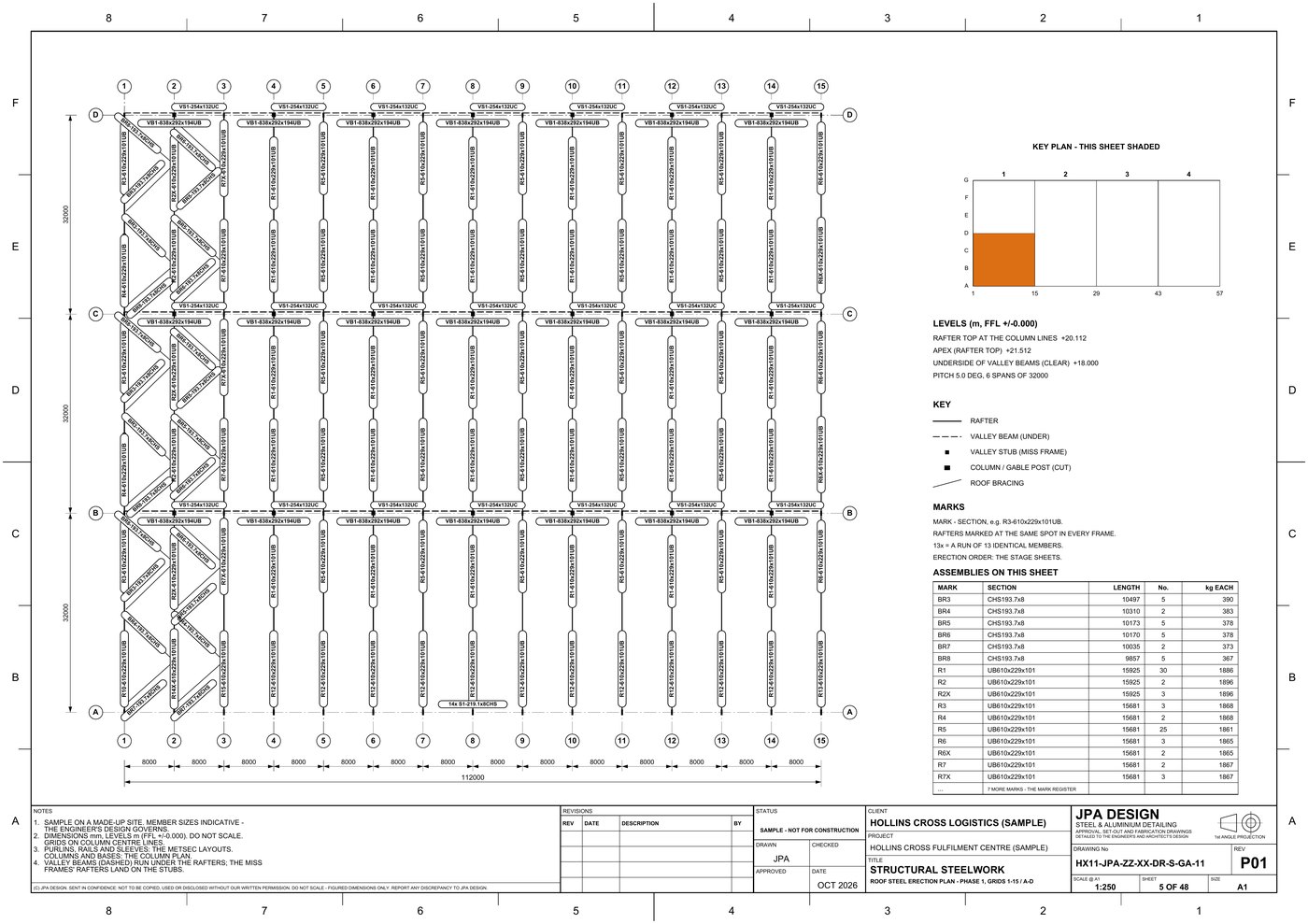

HX11Sample project

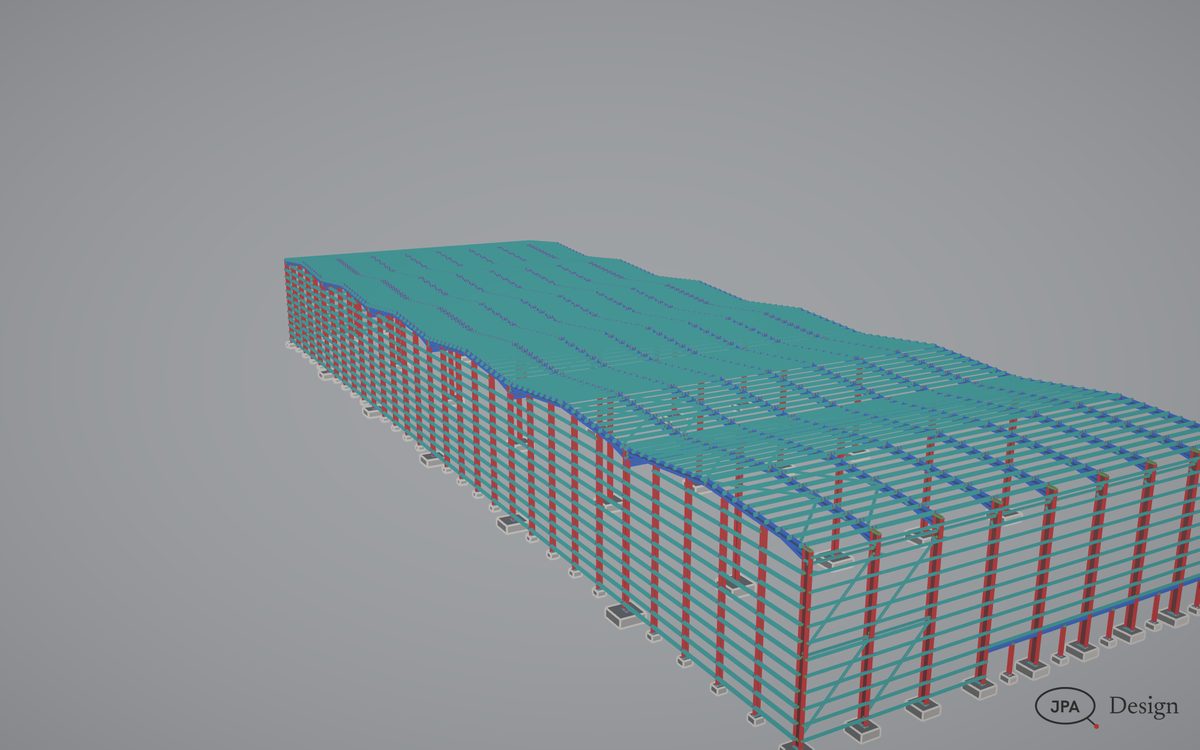

A 3,400 t cross-dock frame in phases, stages and lots

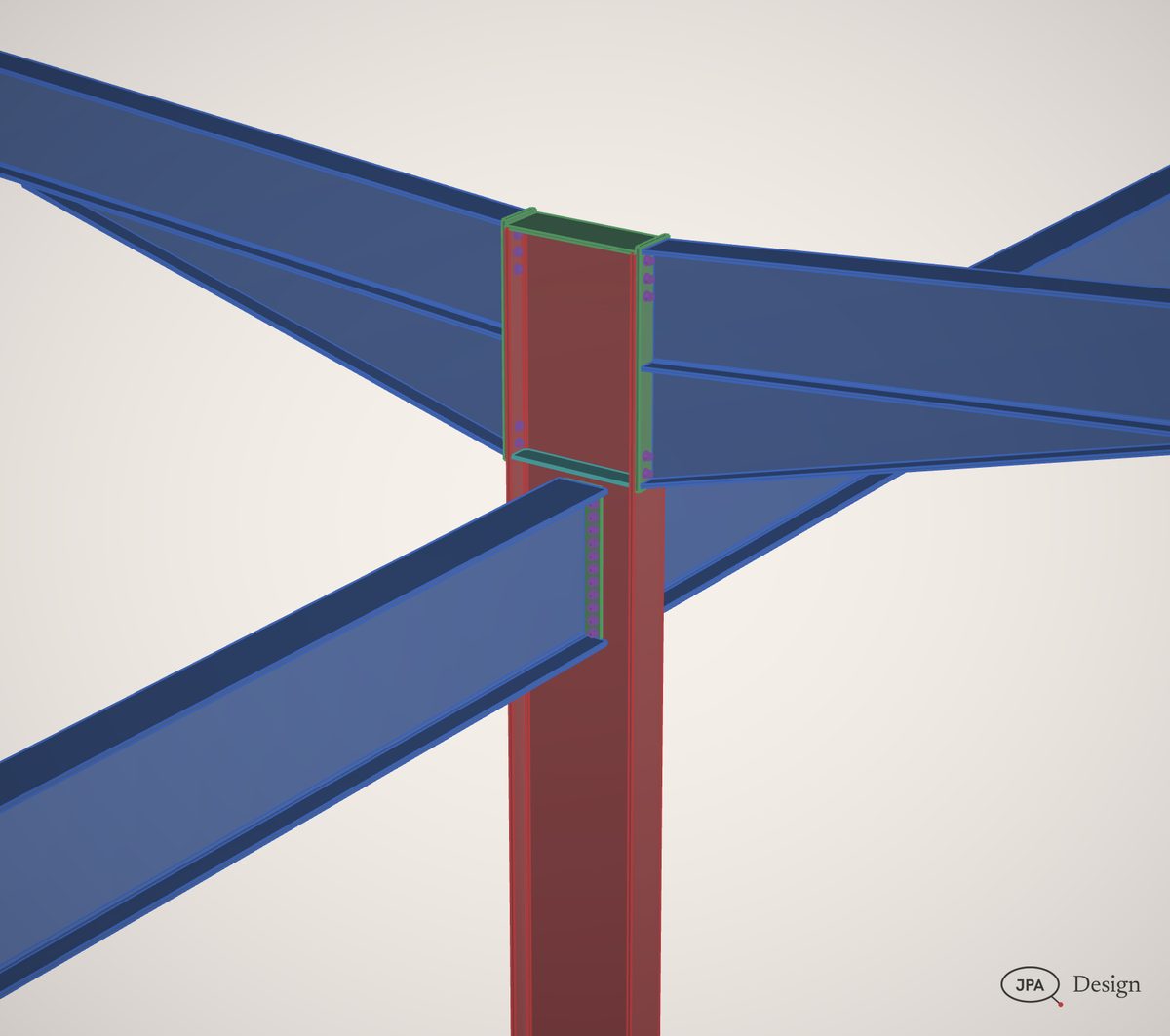

Six 32 m spans and 56 bays on hit-and-miss valley columns, broken into 4 phases, 84 stable-box stages and 153 lots, drawn as 48 A1 GA, erection and Metsec sheets.

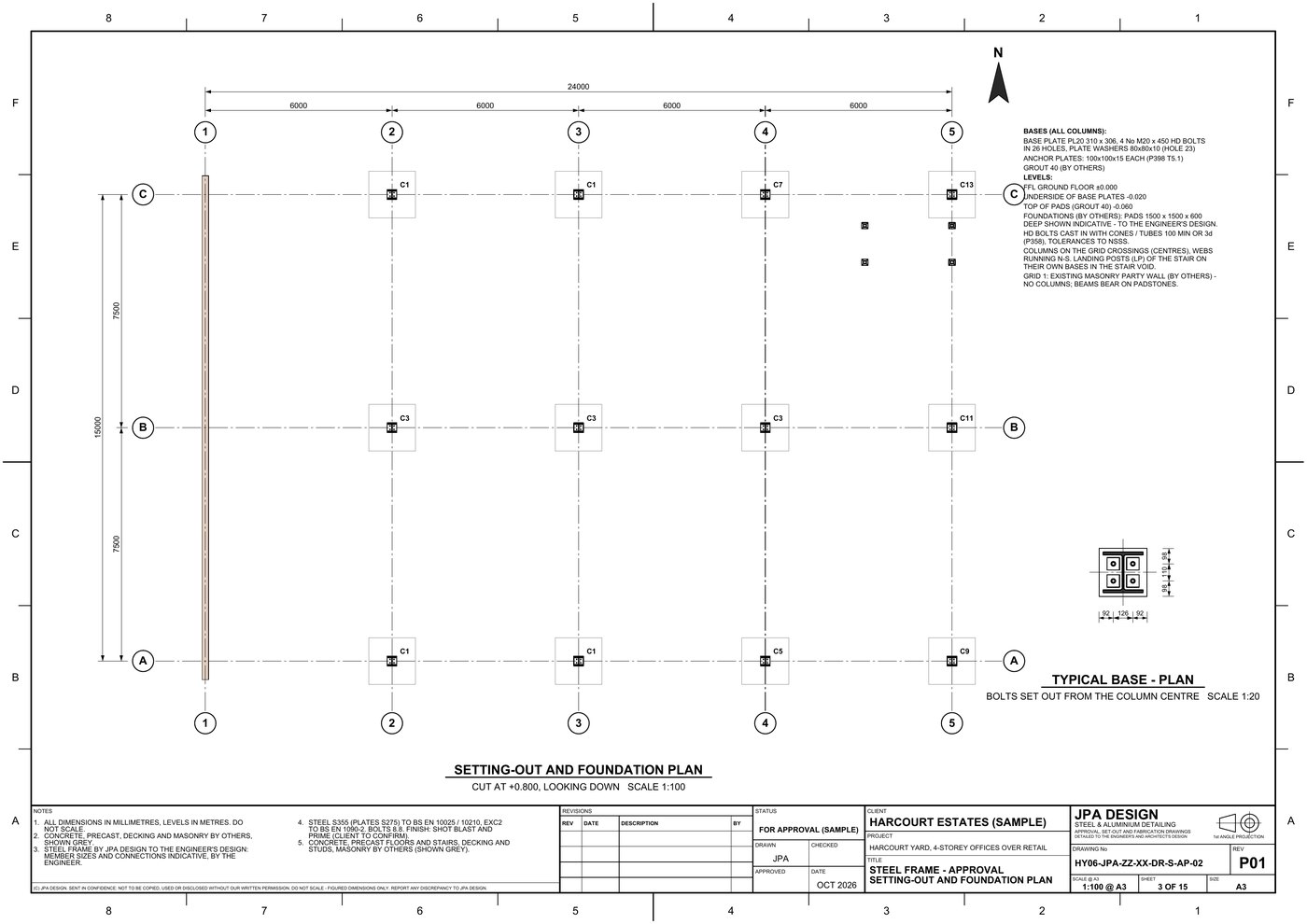

HY06Sample project

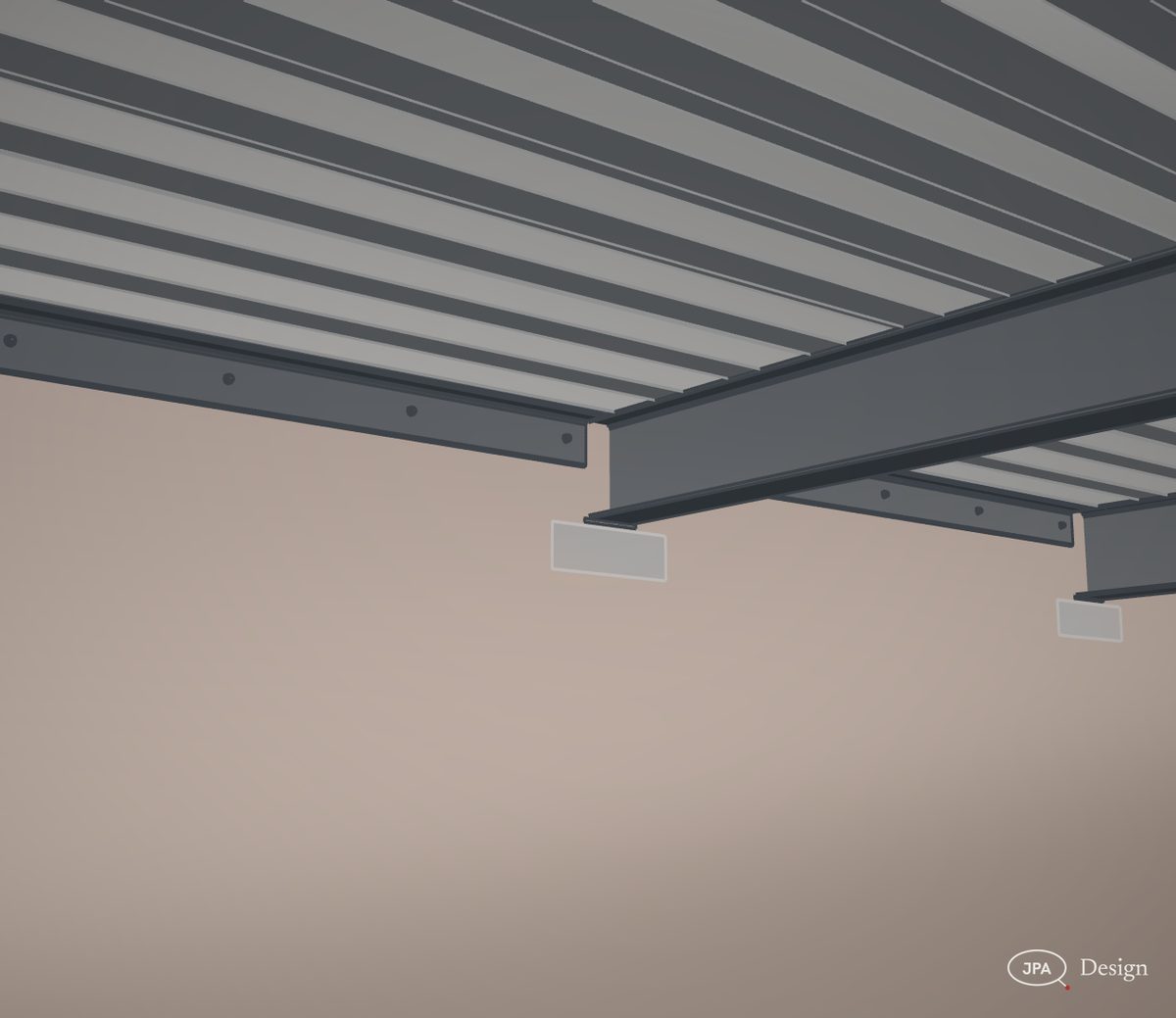

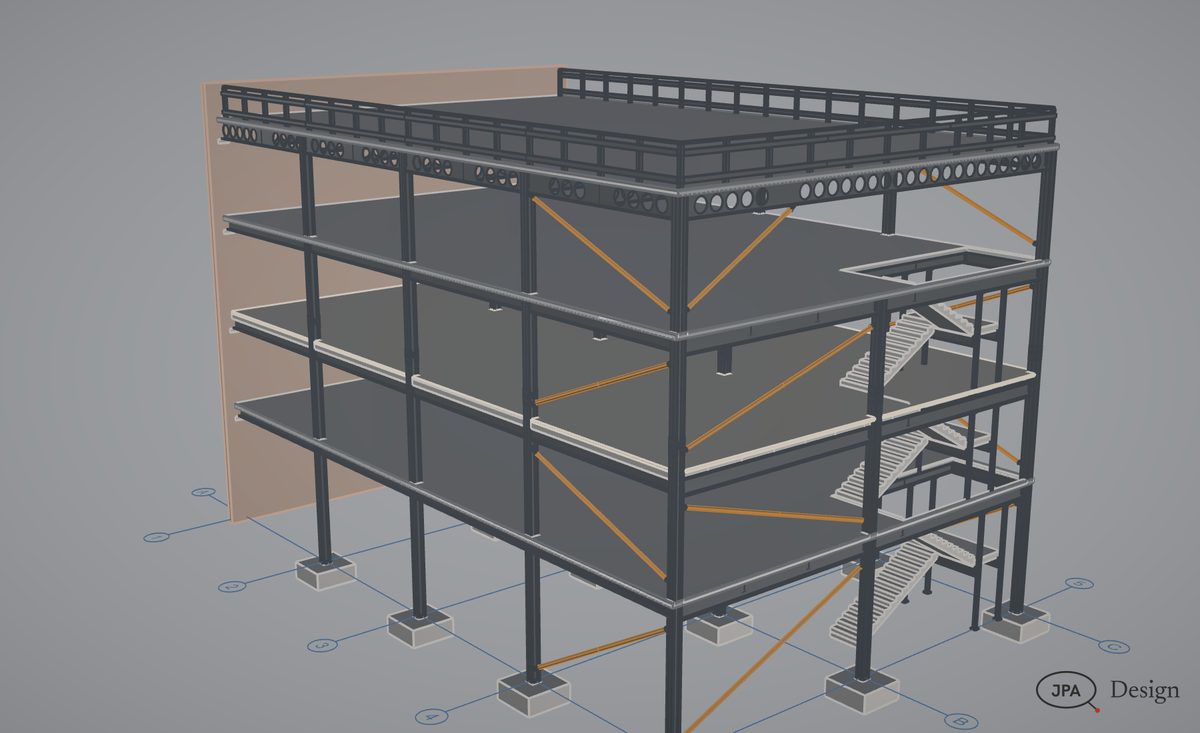

A multi-storey frame with padstones, parapet steel and a precast stair
Columns with P358 splices, fin plate and end plate connections, bracing, composite and hollowcore floors, and the padstones and parapet steel drawn in detail.
Fixed before any work starts, on your drawings. No VAT charged.
| Pack | From | Turnaround |
|---|---|---|
| Portal frame buildingGA, foundations, assemblies, plates, cold-rolled, NC1 | £895 | 3-5 days |
| Bigger framesFull fabrication and erection pack, on the tonnage | £10 / t | min £895 |
| Erection and lift plansStages, lifts, loads, with any frame pack | quoted per job |
Your engineer designs the steel; the drawings follow that design.
Send the drawings and get a fixed price back within four hours.
Not ready to send drawings? Ask for the full sample pack for your type of work, or a call back, with the form.
