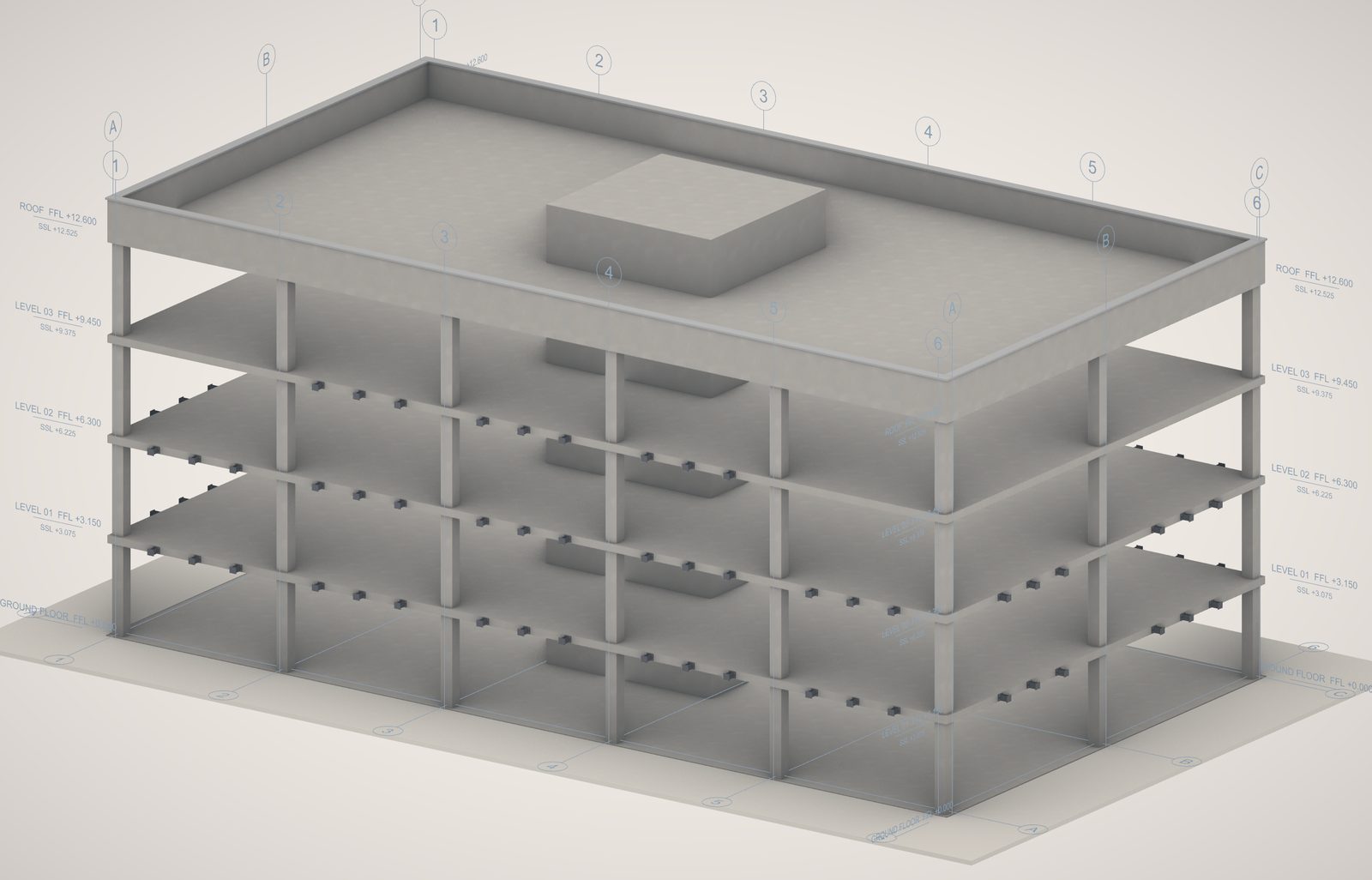

Services/Site set-out and first fix
Balcony stubs, cast-ins, holding-down bolts and post fixings set out to the grid lines before anything is poured, with 3D sheets the installers can read on site.
What comes back, stage by stage. Take the stages you need.
| Plan | Every stub, cast-in or bolt group dimensioned off the grids, levels to the slab or pad. |
| Schedule | Every item with its set-out, level and orientation, by stack, run or base. |
| Details | The typical cast-in or base in section, with the product’s own data. |
| 3D sheets | Each stack or area in 3D with its set-out on it, for the people on site. |
Made-up jobs, drawn the way a real one is: the model, the renders and the sheets that come out of it. Click a sheet to read it whole.
PDF, 5 sheets, 2 MB. Ask for the full pack.
MC01Sample project
Balcony stubs set out before the slabs were poured
Every Leviat stub dimensioned off the grids with its level and projection, scheduled by stack, and each stack drawn in 3D with its set-out on it.
Open the sheet
Open the sheet
Open the sheetAF09Sample project

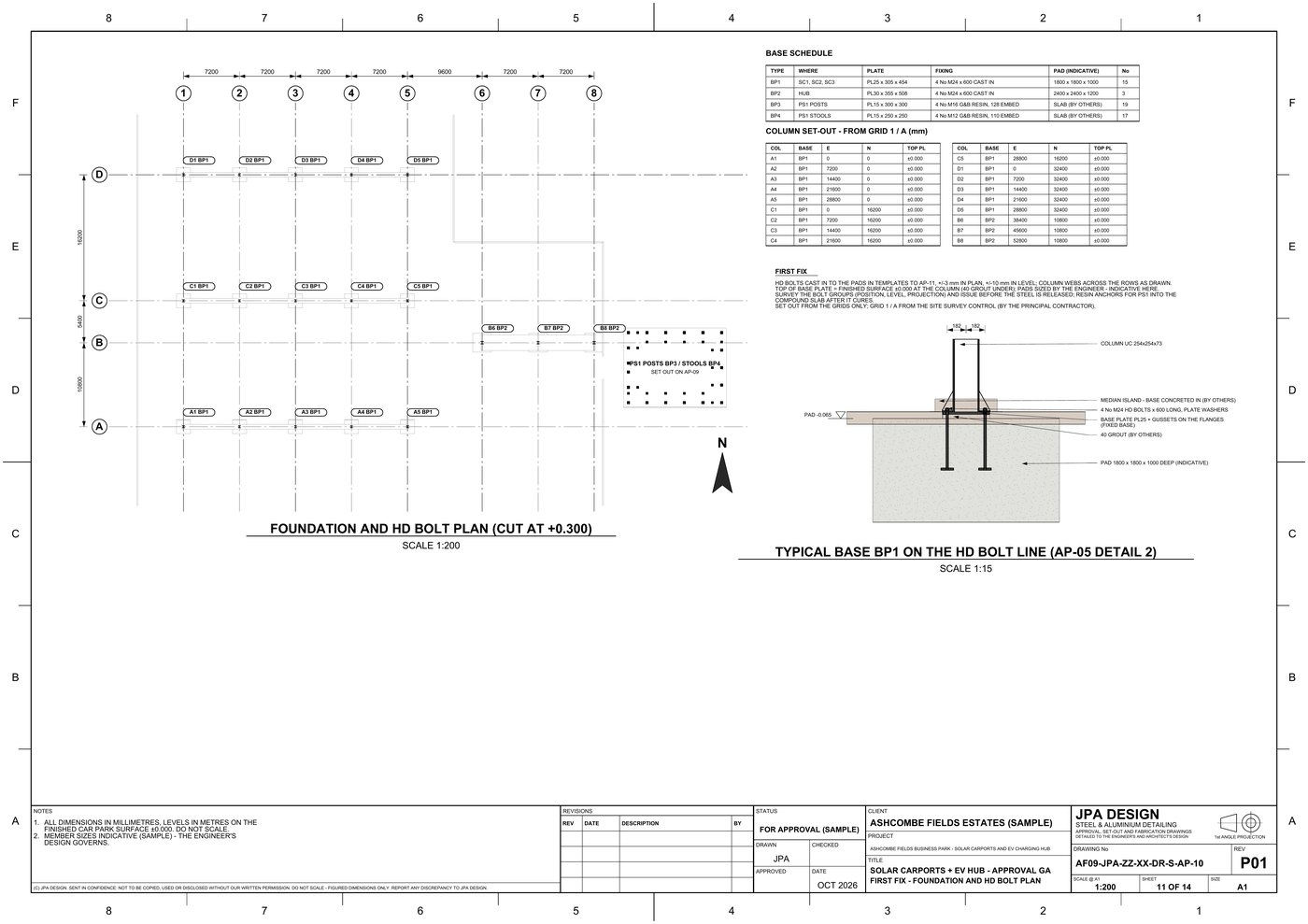

Foundation and HD bolt set-out for carports
Every base set out from the grid, the HD bolt groups dimensioned, a base schedule for the groundworker.
Open the sheetU7Sample project

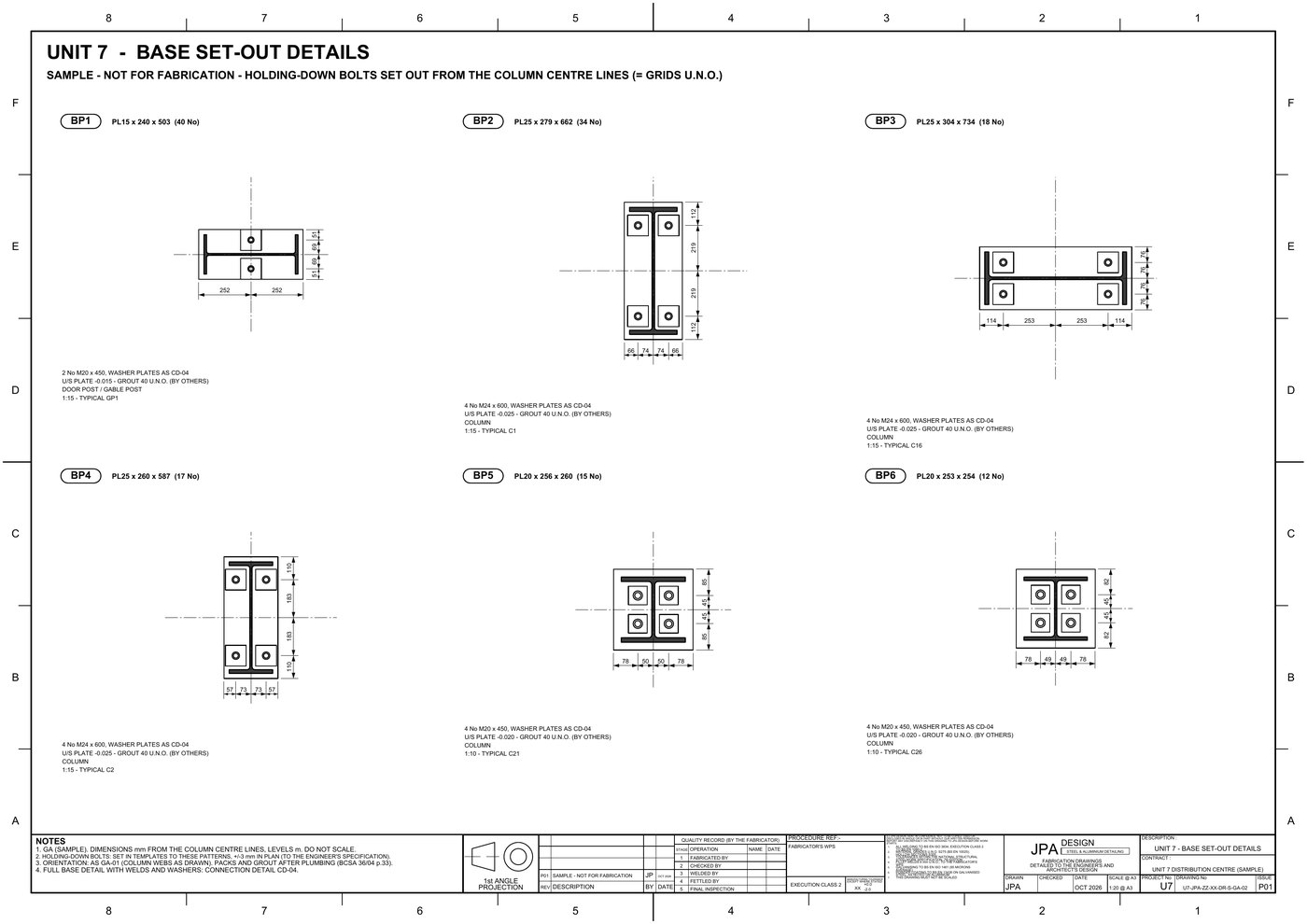

Foundation and HD bolt plans for a 411 t frame
Every column base marked with its type, the HD bolts set out from the column centre lines on true base plans.
Open the sheet
Open the sheetFixed before any work starts, on your drawings. No VAT charged.
| Pack | From | Turnaround |
|---|---|---|
| First fix set-outPlan, schedule, typical detail, 3D sheets | £250 | next day |
Your engineer designs the steel; the drawings follow that design.
Send the drawings and get a fixed price back within four hours.
Not ready to send drawings? Ask for the full sample pack for your type of work, or a call back, with the form.
