House extensions, from planning to the steel.

Planning drawings and building regulations sets for rear and side extensions and knock-throughs, drawn from one 3D model of the house: plans with the furniture, elevations with the permitted development heights, sections, details with every layer labelled, and the beams and padstones the builder needs.

Send the drawings See the samples

Hawthorn Avenue a 4.2 m rear extension on a 1930s semiSample project

Planning drawingsfrom £495

Planning + building regsfrom £895

ChecksPD heights, AD L glazing

Quotewithin 4 hours

The pack

What comes back, stage by stage. Take the stages you need.

Planning	Location and block plans, existing and proposed plans and elevations, roof plan, a section, 3D views and coloured elevations - prior approval, LDC or householder.
Building regs	Demolition plan, keyed-note plan, foundations and drainage, roof framing, sections, construction details with every layer labelled, structural openings, energy and fire notes.
Steel	Beams, padstones, bearings and temporary works to the engineer's calculation, with a fabrication sheet for the beam if the shop wants one.
Checked	Permitted development depth and heights, the AD L glazing allowance and the beam bearings checked on the model.

Samples

Made-up jobs, drawn the way a real one is: the model, the renders and the sheets that come out of it. Click a sheet to read it whole.

Download the sample drawings

PDF, 5 sheets, 2 MB. Ask for the full pack.

HA17Sample project

23 Hawthorn Avenue

A 4.2 m single-storey rear extension and a kitchen knock-through on a 1930s semi

The prior approval route on a semi: a 4.2 x 5.8 m extension under a flat roof with a roof lantern and 3.6 m bifolds, the old rear wall opened 4.1 m on twin steel beams, the house drawn as it stands - bays under half-timbered gables, brick and render, clay tiles. Eaves 2.96 m from the ground and glazing inside the AD L allowance, both checked on the model.

4.2 mextension

4.1 mknock-through

19A3 sheets

6PD / AD L checks passed

**HA17**Inside, through the knock-through to the lantern

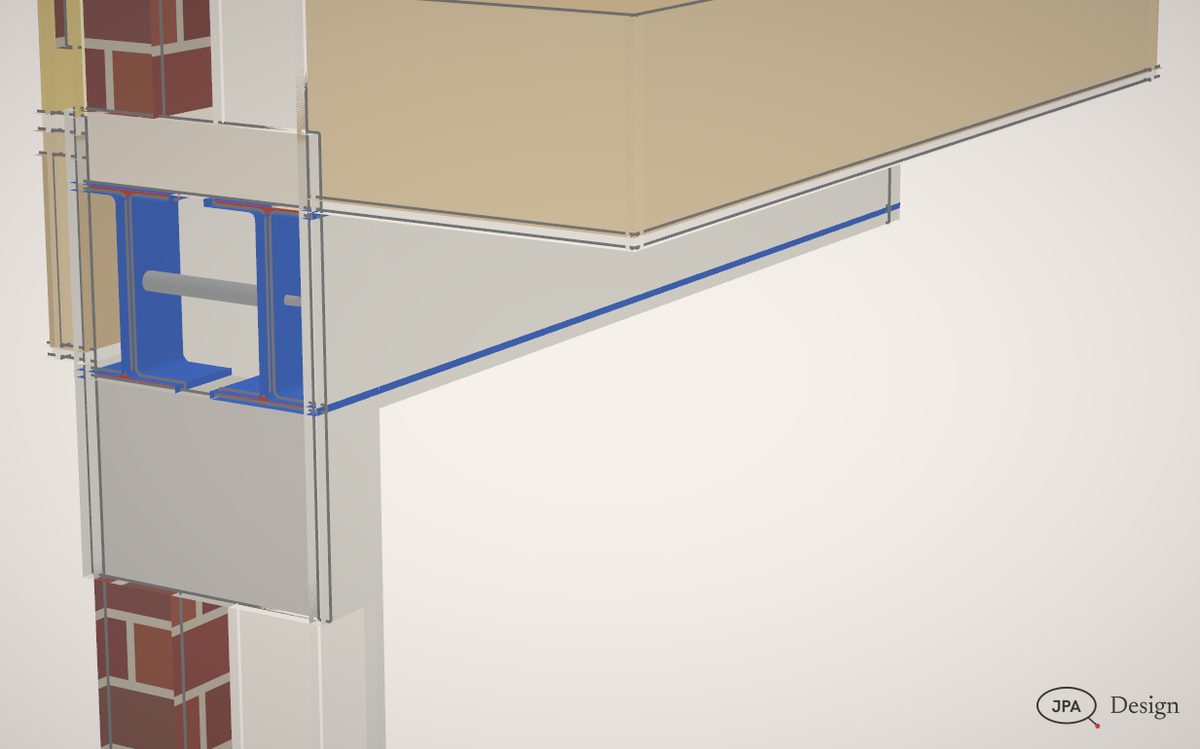

**HA17**SB1 cut through on its bearing: twin beams, padstone, dry pack, casing

HA17-PL-05 Proposed ground floor plan — **HA17-PL-05**Proposed ground floor plan *1:50 @ A3*

HA17-PL-07 Proposed elevations with the prior approval heights — **HA17-PL-07**Proposed elevations with the prior approval heights *1:100 @ A3*

HA17-PL-09 Coloured elevations — **HA17-PL-09**Coloured elevations *NTS*

HA17-BR-06 Construction details, every layer labelled — **HA17-BR-06**Construction details, every layer labelled *1:20 / 1:10 @ A3*

Prices

Fixed before any work starts, on your drawings. No VAT charged.

Pack	From	Turnaround
Planning drawingsExisting and proposed plans, elevations, section, 3D views	£495	5 days
Planning + building regsBoth sets, details, structural openings, specification	£895	8 days
Building regs onlyAfter a planning consent by others	£495	5 days
