Services/Farm buildings
Livestock, cubicle and lambing sheds, grain stores, straw barns and farm workshops: the portal frame and its foundations, roof sheets and roof lights in courses, panels, Yorkshire boarding and flashings, with an order list and a step-by-step install guide for the yard.
What comes back, stage by stage. Take the stages you need.
| Approval | 3D views, GA plan, elevations and gables, for the client and the planning application. |
| Frame | GA plan, foundations and HD bolts, roof steel, a frame section, connection details and plates. |
| Envelope | Roof sheets and roof lights in courses, end laps on the purlins, precast panels, boarding, flashings and doors. |
| Yard | Order list, delivery schedule, programme and an install guide step by step, new parts highlighted. |
Made-up jobs, drawn the way a real one is: the model, the renders and the sheets that come out of it. Click a sheet to read it whole.
PDF, 6 sheets, 2 MB. Ask for the full pack.
MF01Sample project
A standard 100 x 40 x 15 ft livestock shed, drawn as the full package

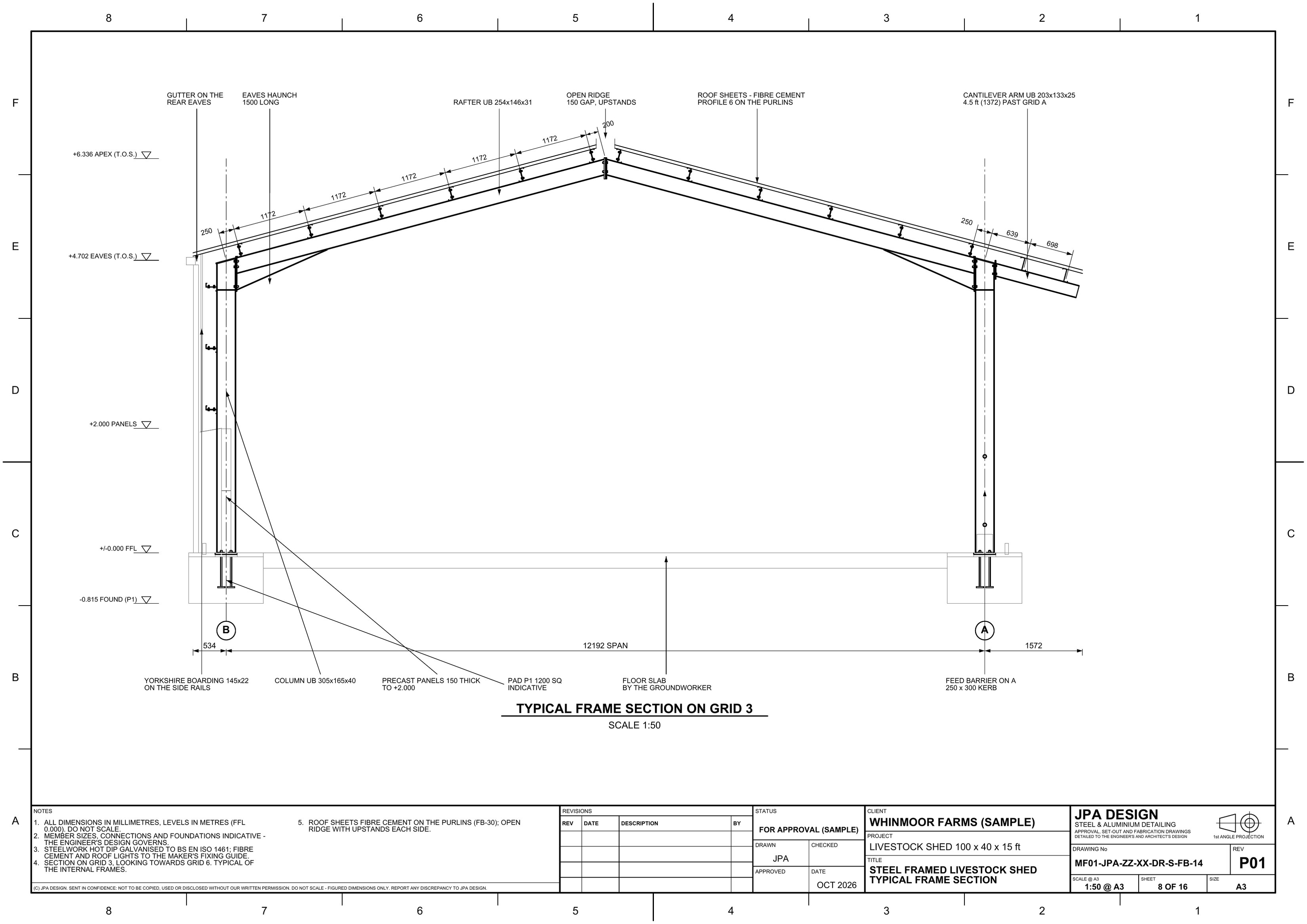

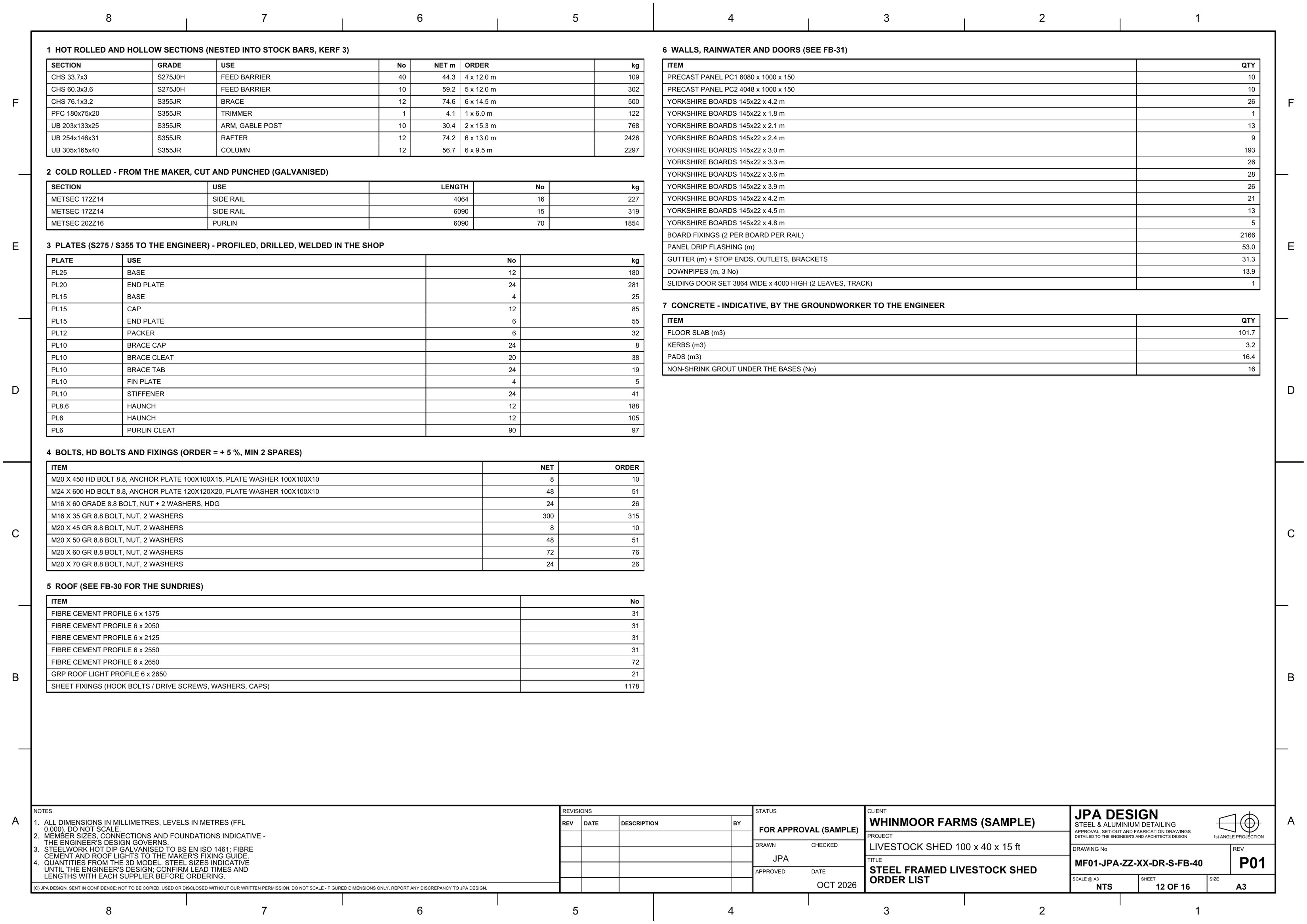

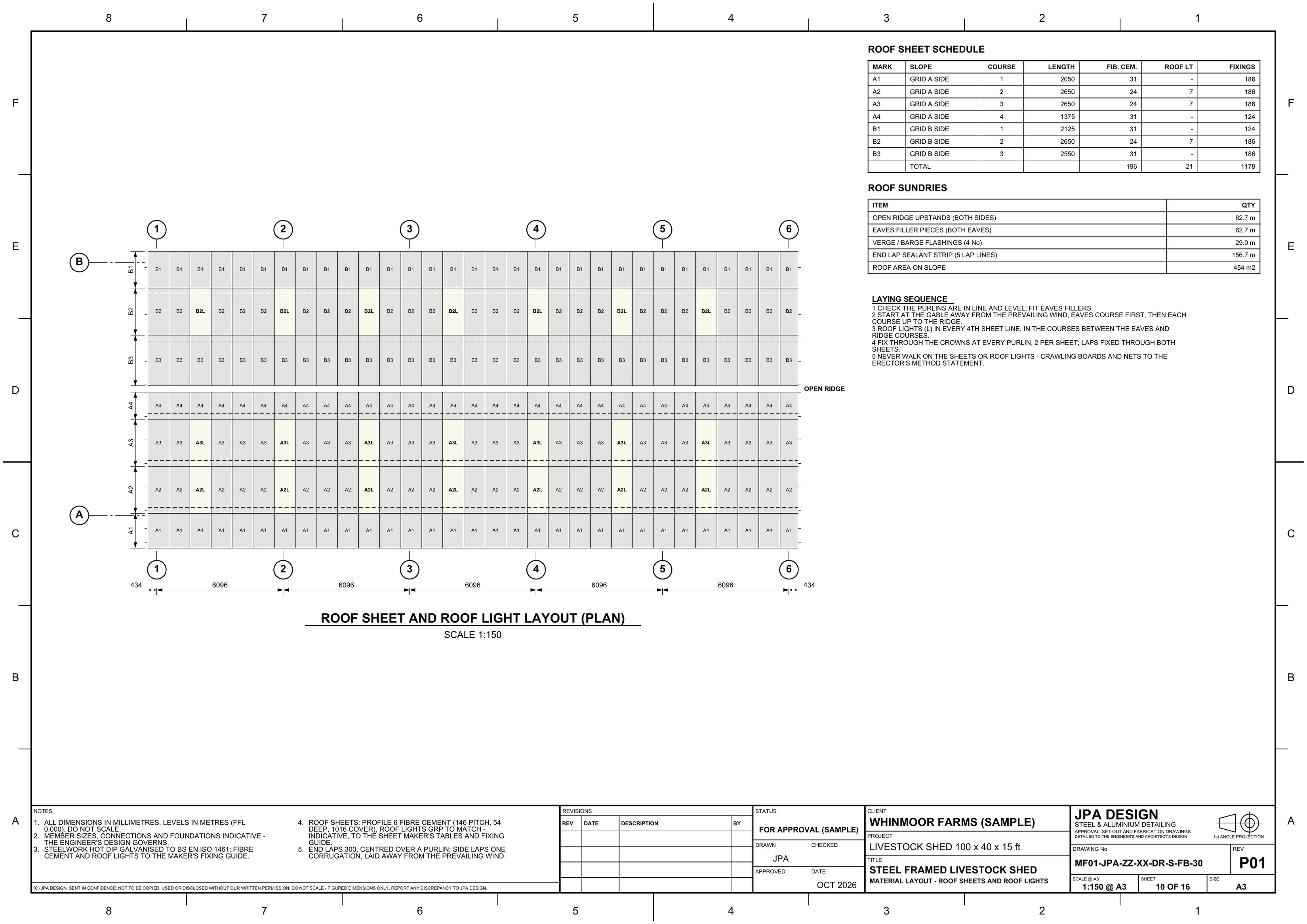

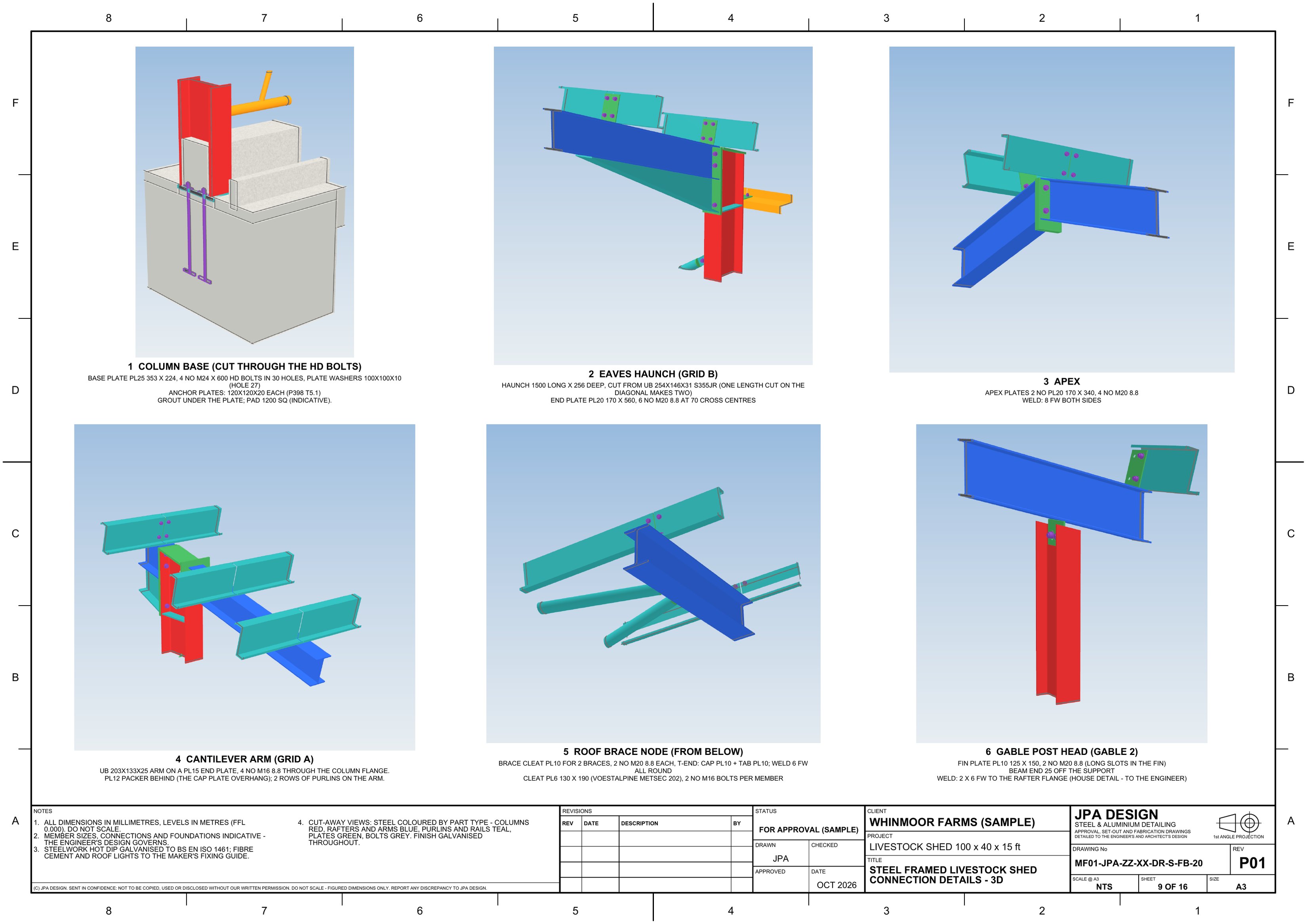

Five 20 ft bays, a 15 degree duo pitch in fibre cement with roof lights 1 in 4, a 4.5 ft cantilever over the open front and feed barrier, precast panels to 2 m with Yorkshire boarding over: 16 sheets from the 3D views to the install guide.
Open the sheet
Open the sheet
Open the sheet
Open the sheet
Open the sheet
Open the sheetRANGESample project
Six standard buildings from one generator, sized the way the trade sells them
Livestock, lambing and cubicle sheds, a grain store, a straw barn and a farm workshop with roller and personnel doors, each drawn from length x span x eaves in feet: frame, roof, walls and doors change with the use.
Fixed before any work starts, on your drawings. No VAT charged.
| Pack | From | Turnaround |
|---|---|---|
| Farm building approval3D views, GA plan, elevations and gables | £295 | 2 days |
| Farm building packApproval, frame, foundations, roof sheets, order list, install guide | £895 | 3-5 days |
Your engineer designs the steel; the drawings follow that design.
Send the drawings and get a fixed price back within four hours.
Not ready to send drawings? Ask for the full sample pack for your type of work, or a call back, with the form.
