Work
Sample projects.
Made-up jobs, modelled and drawn the way a real one is, from a single balcony to a 3,400 t distribution centre. Each is shown on the service pages it belongs to, with its renders and drawing sheets.
AQ15Sample project
Ashvale Quarter
Bolt-on steel balconies on cast-in stubs, and concrete balconies with side-fixed balustrades
Balconies · Balustrades and handrails · Stairs · Canopies and carports · Fencing and gates · Facades, SFS and windows · Erection, lifting and logistics · 3D visuals
MC01Sample project

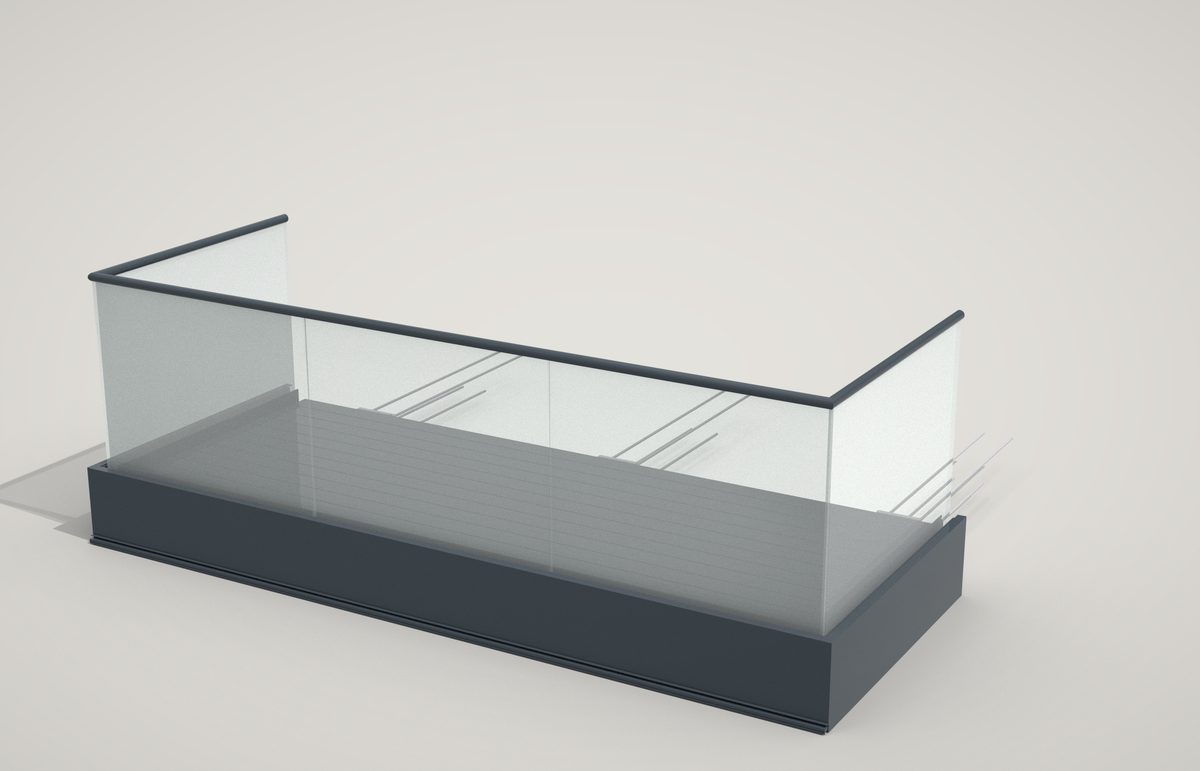

Meridian Court
34 bolt-on balconies on 14 stacks, three balustrade options
Balconies · Balustrades and handrails · Site set-out and first fix
KP10Sample project
Kestrel Point
88 Juliet balconies on a Metsec SFS facade
FH12Sample project

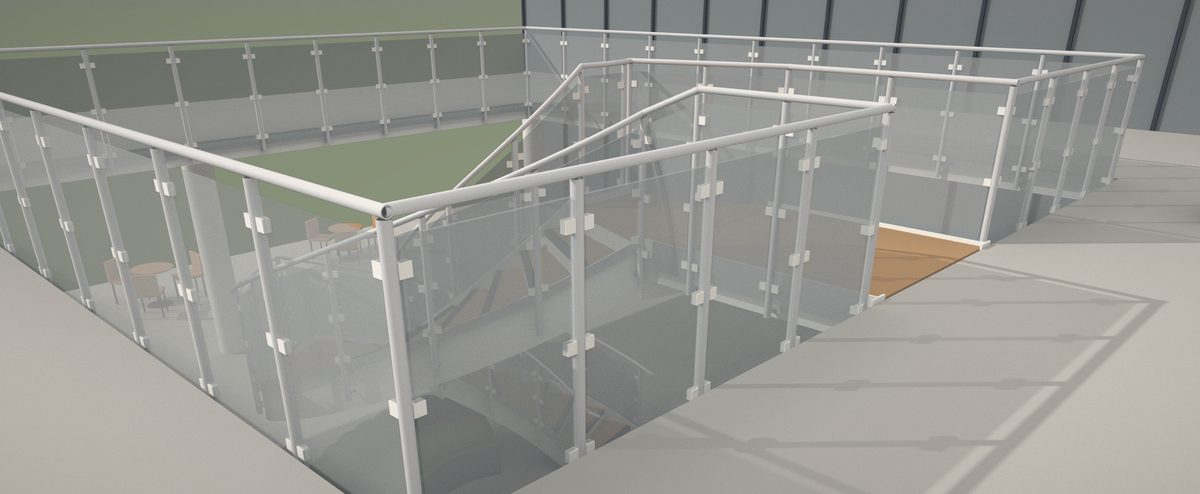

Fernhill House
Stainless post-and-glass guarding to a helical stair and its void
HF08Sample project

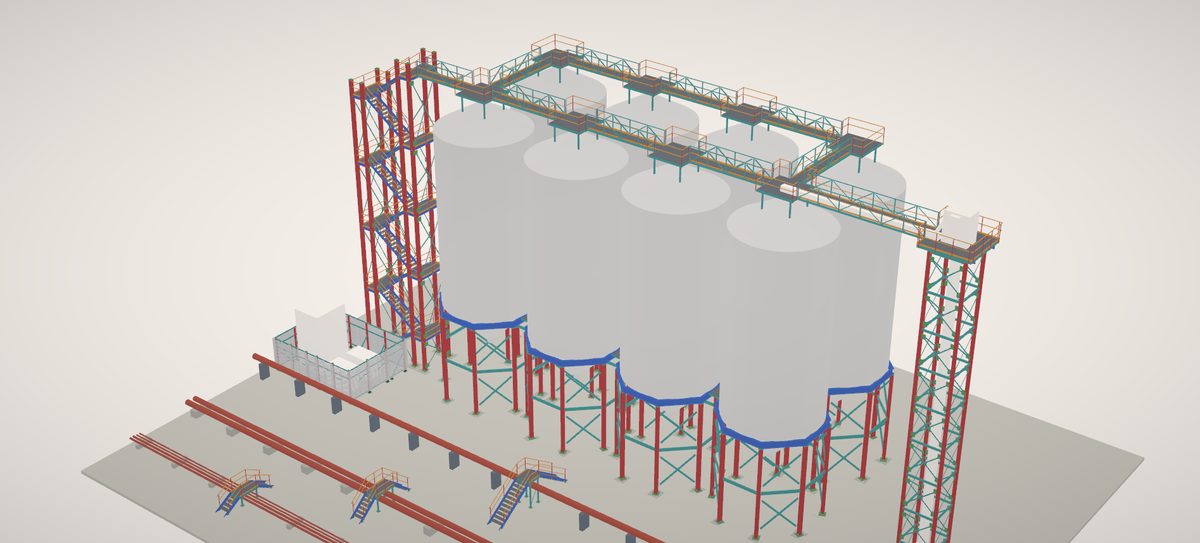

Holmefield
A 24.7 m stair tower to the silo tops
TP03Sample project
Thornleigh Parkway
Public stairs to a footbridge
U7Sample project
Unit 7
A 411 t twin-span distribution centre, the full Tekla-style issue
Structural steel frames · Erection, lifting and logistics · Site set-out and first fix · 3D visuals
HX11Sample project

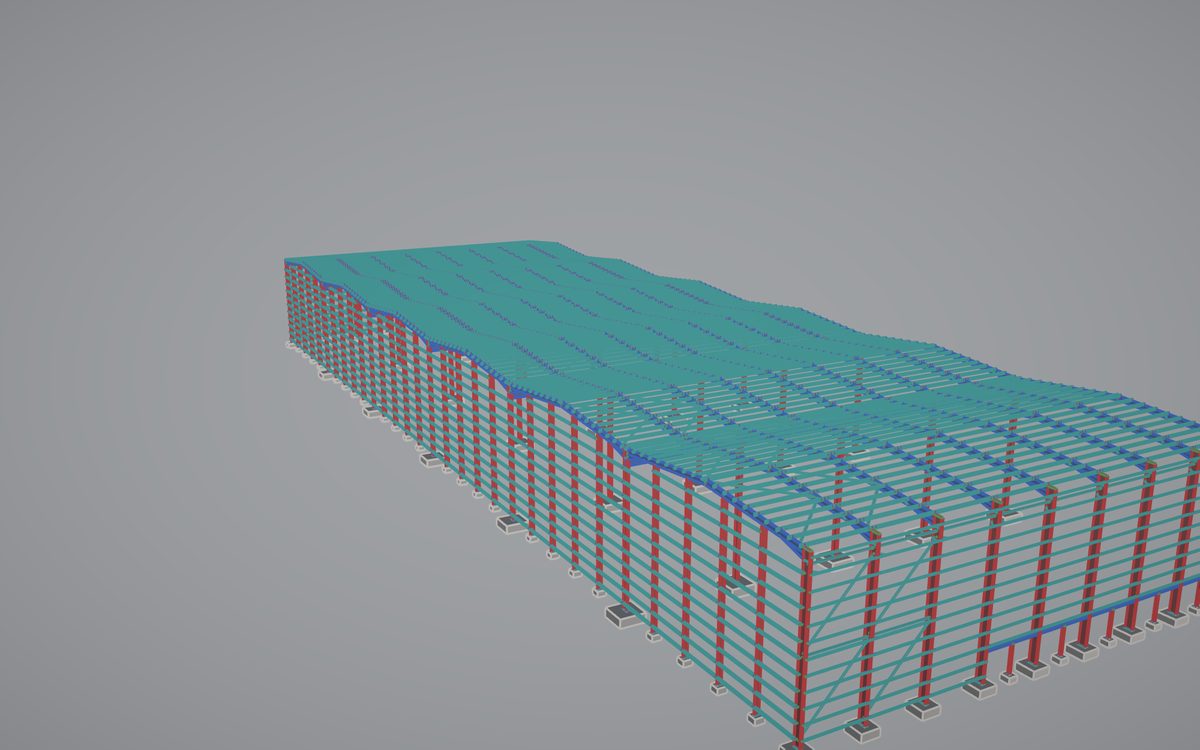

Hollins Cross
A 3,400 t cross-dock frame in phases, stages and lots
HY06Sample project

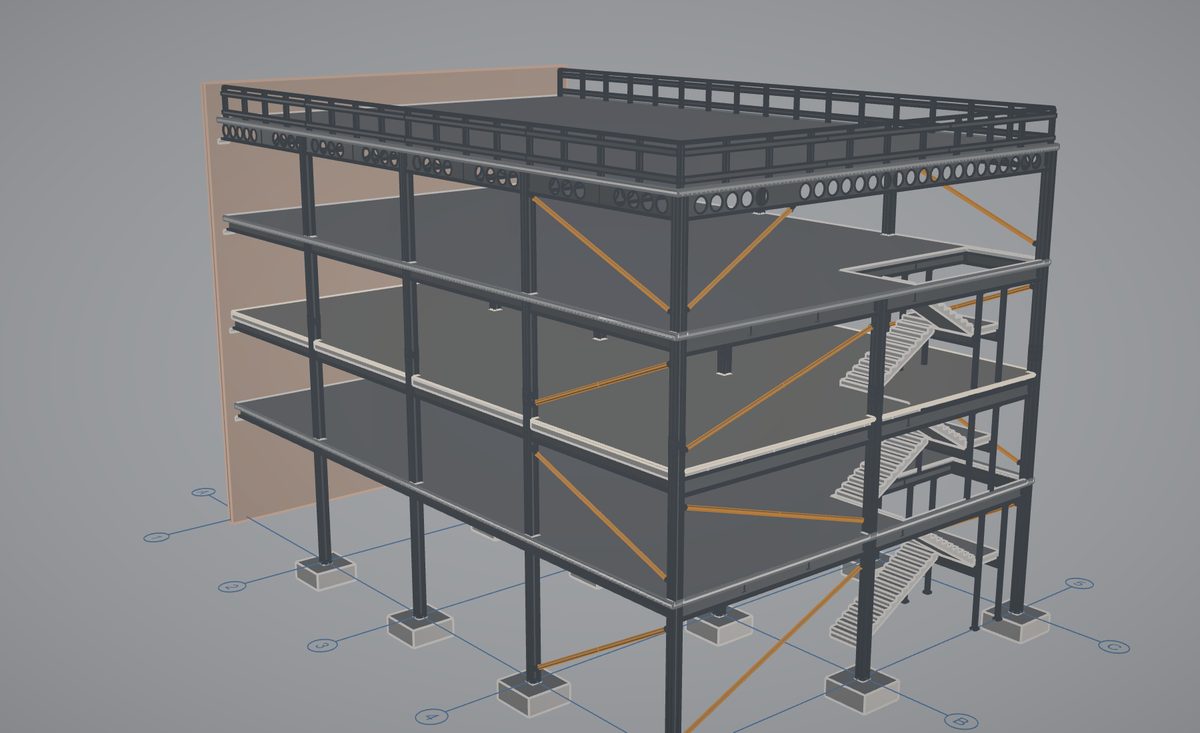

Harcourt Yard
A multi-storey frame with padstones, parapet steel and a precast stair
MF01Sample project
Livestock shed
A standard 100 x 40 x 15 ft livestock shed, drawn as the full package
RANGESample project

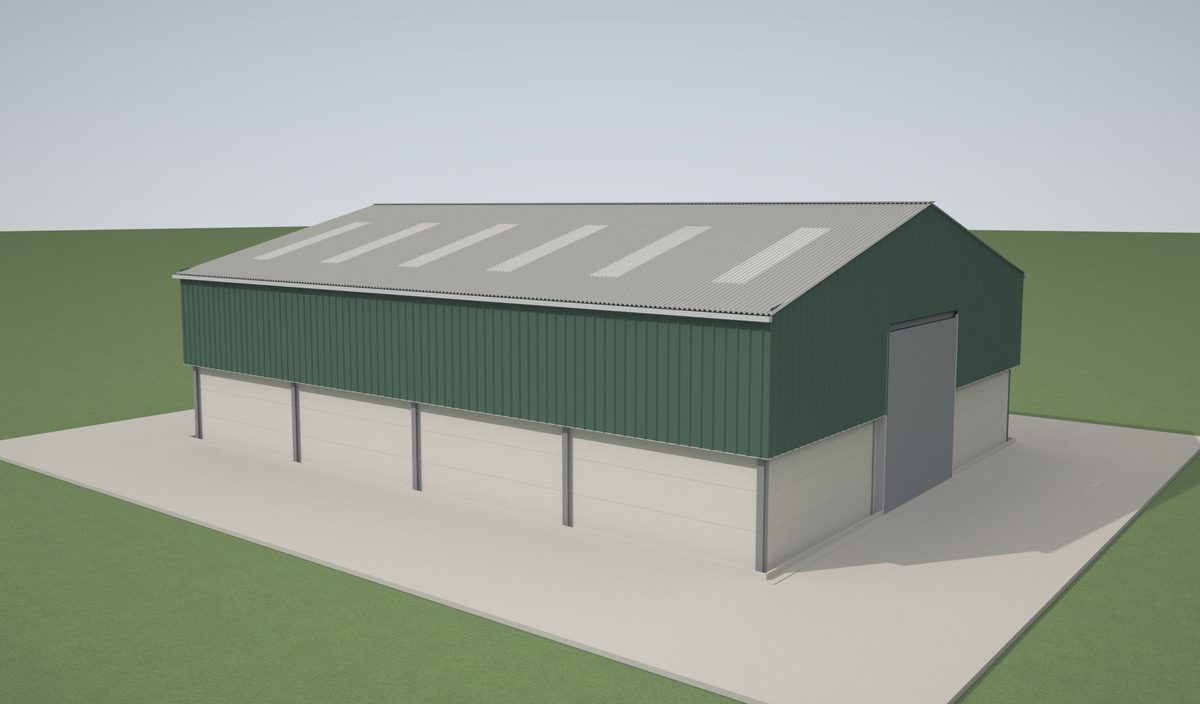

The farm building range
Six standard buildings from one generator, sized the way the trade sells them
AF09Sample project

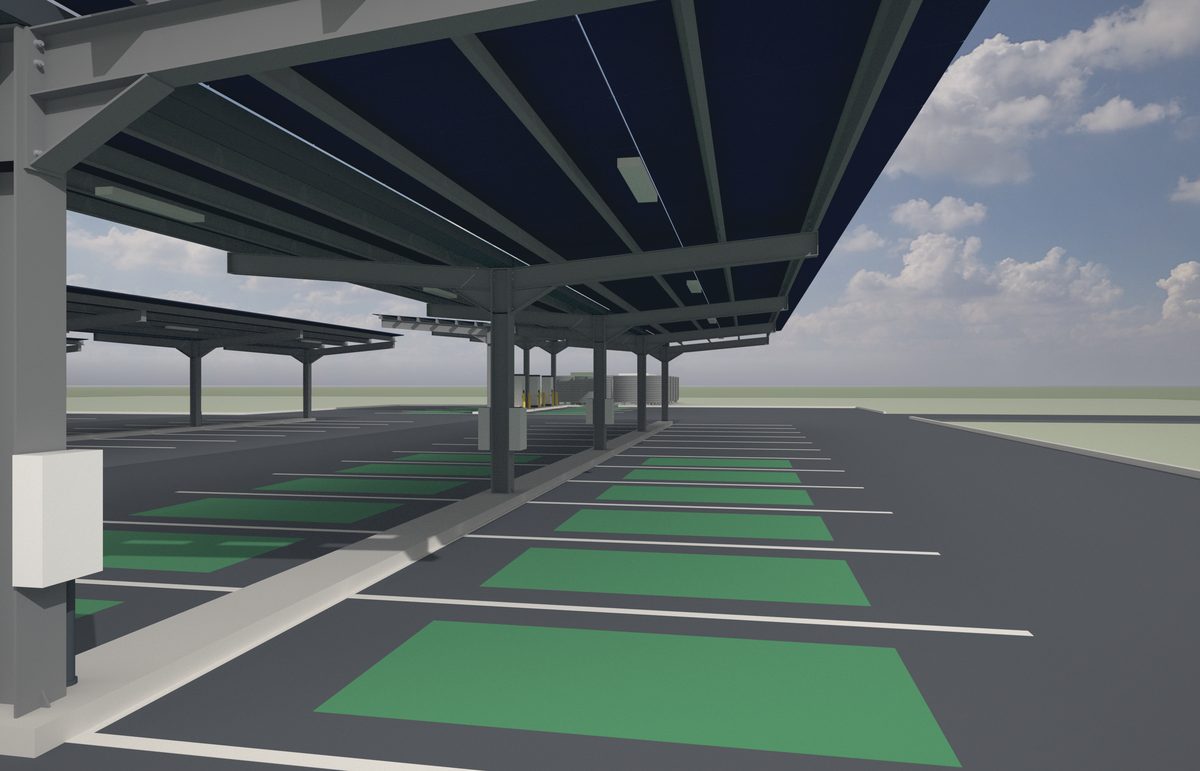

Ashcombe Fields
Gull-wing solar carports and a rapid-charge hub
AL05Sample project
Ashworth Lane
Mesh and palisade fencing with a 10 m cantilever gate
HA17Sample project
23 Hawthorn Avenue
A 4.2 m single-storey rear extension and a kitchen knock-through on a 1930s semi
EG16Sample project
Elm Grove
A house frontage: a bow-top driveway pair, a pedestrian gate and railings between brick piers
